Saki - 2D Bottom-side Automated Optical Inspection Machine
SAKI-M14-2DiLU1
2D Bottom-side Automated Optical Inspection Machine
Saki - 2D Bottom-side Automated Optical Inspection Machine
SAKI-M14-2DiLU1
2D Bottom-side Automated Optical Inspection Machine
Contactez-nous
Besoin d'un devis, d'une installation ou d'une formation ?
Call +32 (0)14 42 44 01 or contactez nous
Nick Janssen
Product specialist
Description

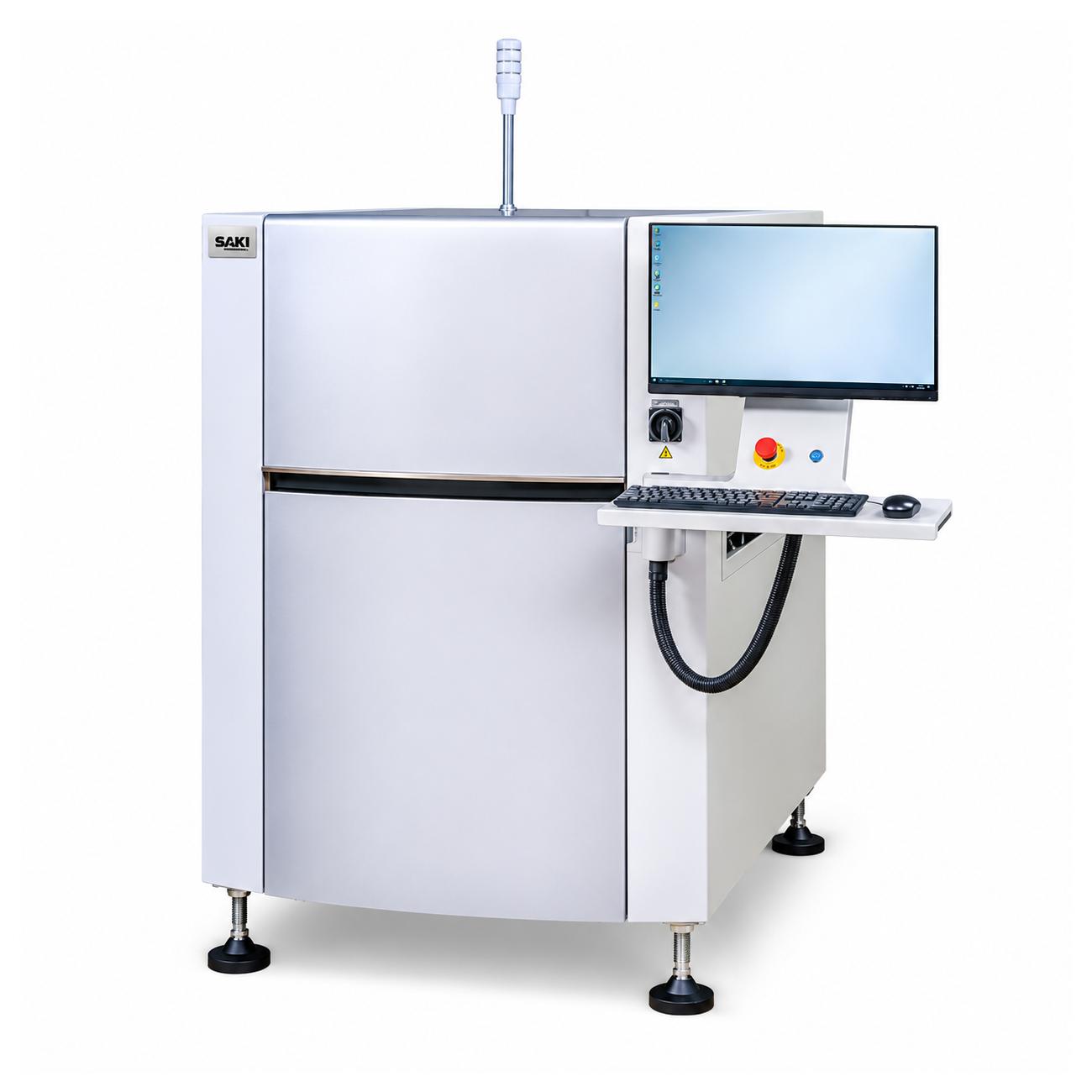

The 2D-AOI is a high-speed, high-precision 2D visual inspection device that supports multiple inspection processes, such as SMT, and through-hole processes. The extremely durable hardware design guarantees a more stable inspection quality than traditional visual inspection and contributes to significant labor savings at production sites.
High-speed Inspection System
- Simultaneous full-board imaging for high-speed inspection
- Saki’s unique Line Scanning Technology
High Reliability
- Robust hardware design guarantees high inspection quality for an extended lifetime
- Unique lighting technology to obtain shadow-free images
Multiple Inspections
- Simultaneous double-sided inspection to increase production efficiency
- Solder inspection of inserted components
- Extra Component Detection (ECD) detects fallen parts, foreign objects, and solder balls across the entire board
Specifications
| Size (WxDxH) | 1040 x 1440 x 1500 mm |
| Weight approx. | 750 kg |
| Electric power requirement | Single-phase ~ 200-240V +/-10%, 50/60Hz, 700VA |
| Resolution | 18μm |
| Air requirement | 0.5MPa, 5 l/min (ANR) |
| Target PCB size in mm | Carrier 50 W x 60 L / 610 W x 610 L - Inspection area 50 W x 60 L / 460 W x 500 L |
| PCB clearance | Top 130mm, Bottom 40mm |
The 2D-AOI is a high-speed, high-precision 2D visual inspection device that supports multiple inspection processes, such as SMT, and through-hole processes. The extremely durable hardware design guarantees a more stable inspection quality than traditional visual inspection and contributes to significant labor savings at production sites.
High-speed Inspection System
- Simultaneous full-board imaging for high-speed inspection
- Saki’s unique Line Scanning Technology
High Reliability
- Robust hardware design guarantees high inspection quality for an extended lifetime
- Unique lighting technology to obtain shadow-free images
Multiple Inspections
- Simultaneous double-sided inspection to increase production efficiency
- Solder inspection of inserted components
- Extra Component Detection (ECD) detects fallen parts, foreign objects, and solder balls across the entire board
