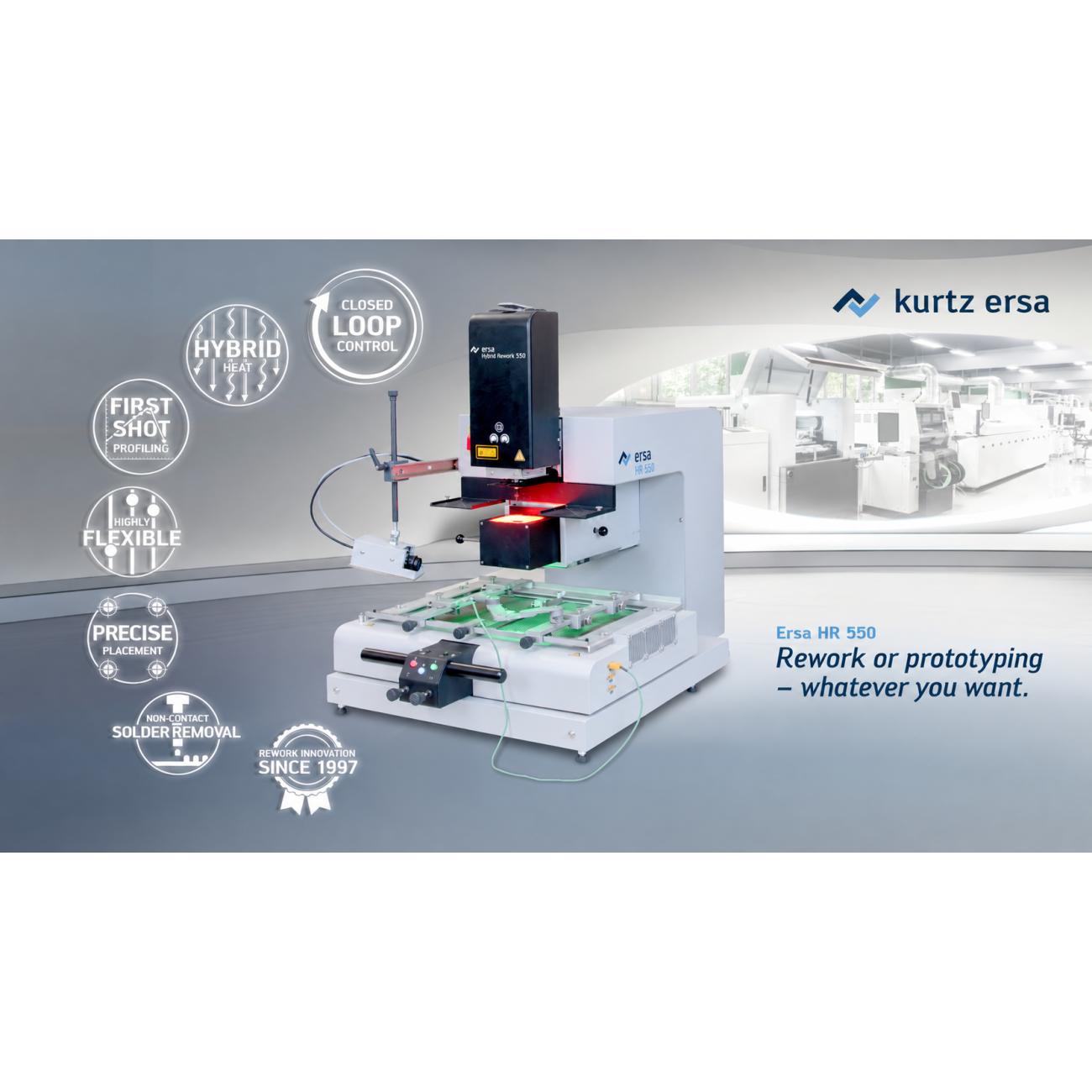

Ersa - Rework Station HR 550

ERS-0HR550

Guided rework with high-performance optical system and flexible heating technology

Ersa - Rework Station HR 550

ERS-0HR550

Guided rework with high-performance optical system and flexible heating technology

37.178,57 / STK - In stock (2)

Plus d'informations sur options de location

Investir sans souci grâce au leasing professionnel

Vous souhaitez agrandir ou moderniser votre parc machines ?
Avec Smans, c’est simple — des machines manuelles aux lignes de production entièrement automatisées.



Nous collaborons avec des partenaires de leasing fiables, offrant des solutions de financement flexibles et transparentes.
Ensemble, nous analysons la valeur et les objectifs de votre projet.

Les avantages du leasing avec Smans :

  • Préservez votre liquidité et votre flexibilité financière
  • Convient aux petits comme aux grands investissements
  • Développez votre capacité sans achat direct
  • Renforcez votre position concurrentielle avec un parc machines moderne


Curieux de savoir ce que le leasing professionnel peut apporter à votre entreprise ? Contactez l’équipe Smans.

    Vous souhaitez savoir ce que le crédit-bail professionnel pourrait apporter à votre projet ? Notre équipe commerciale se fera un plaisir de répondre à toutes vos questions !



    • Expertise indépendante
    • Les clients nous donnent un 9+
    • Offre étendue
    • Plus de 50 ans d'expérience

    Besoin d'un devis, d'une installation ou d'une formation ?
    Call +32 (0)14 42 44 01 or contactez nous

    Contact us

    Besoin d'un contact direct avec un représentant commercial?

    Nick Janssen

    Product specialist

      Or leave your details and we will contact you as soon as possible.


      • Expertise indépendante
      • Les clients nous donnent un 9+
      • Offre étendue
      • Plus de 50 ans d'expérience
      • Expertise indépendante
      • Les clients nous donnent un 9+
      • Offre étendue
      • Plus de 50 ans d'expérience

      Description

      Thanks to guided processes, the Ersa Rework System HR 550 ensures safe rework on the basis of simple and convenient operation. Predicate: visually leading!

      From 01005 chips to large SMT connectors (120 mm), from SMT flip chips to THT pin grid arrays, BGAs on flex circuit or multilayer BGAs – Ersa rework systems offer the optimal solution for all applications.

      • Highly efficient 1.800 W hybrid heating head
      • Large-area IR bottom heating in 3 heating zones (2,400 W)
      • Integrated vacuum pipette for component removal and placement
      • Highly accurate placement with integrated force sensor
      • Enhanced Visual Assistant (EVA)
      • Computer aided component placement
      • Process control and documentation via software HRSoft 2
      • Suitable for the use of the Dip&Print Station

      Specifications

      Dimensions (W x D x H)573 x 765 x 545/747 mm (heating head down/up)
      Weight76 kg
      Antistatic Designyes
      Power Rating4.200 W
      Nominal voltage230 in V AC
      Upper heatingHybrid emitter (900 + 900 W), 70 x 70 mm
      Lower heatingIR emitter (3 x 800 W), 390 x 270 mm
      PCB sizeup to 400 x 300 mm (+x) up to 520 x 360 mm (+x) (0HR550L)
      Component sizefrom 01005 to 70 x 70 mm
      OperationWindows-PC
      Test symbolCE
      OptionReflow process camera: 2,3 MP, CMOS GigE color camera, 25 mm focal length, illumination 2x LED, adjustable

      Thanks to guided processes, the Ersa Rework System HR 550 ensures safe rework on the basis of simple and convenient operation. Predicate: visually leading!

      From 01005 chips to large SMT connectors (120 mm), from SMT flip chips to THT pin grid arrays, BGAs on flex circuit or multilayer BGAs – Ersa rework systems offer the optimal solution for all applications.

      • Highly efficient 1.800 W hybrid heating head
      • Large-area IR bottom heating in 3 heating zones (2,400 W)
      • Integrated vacuum pipette for component removal and placement
      • Highly accurate placement with integrated force sensor
      • Enhanced Visual Assistant (EVA)
      • Computer aided component placement
      • Process control and documentation via software HRSoft 2
      • Suitable for the use of the Dip&Print Station
