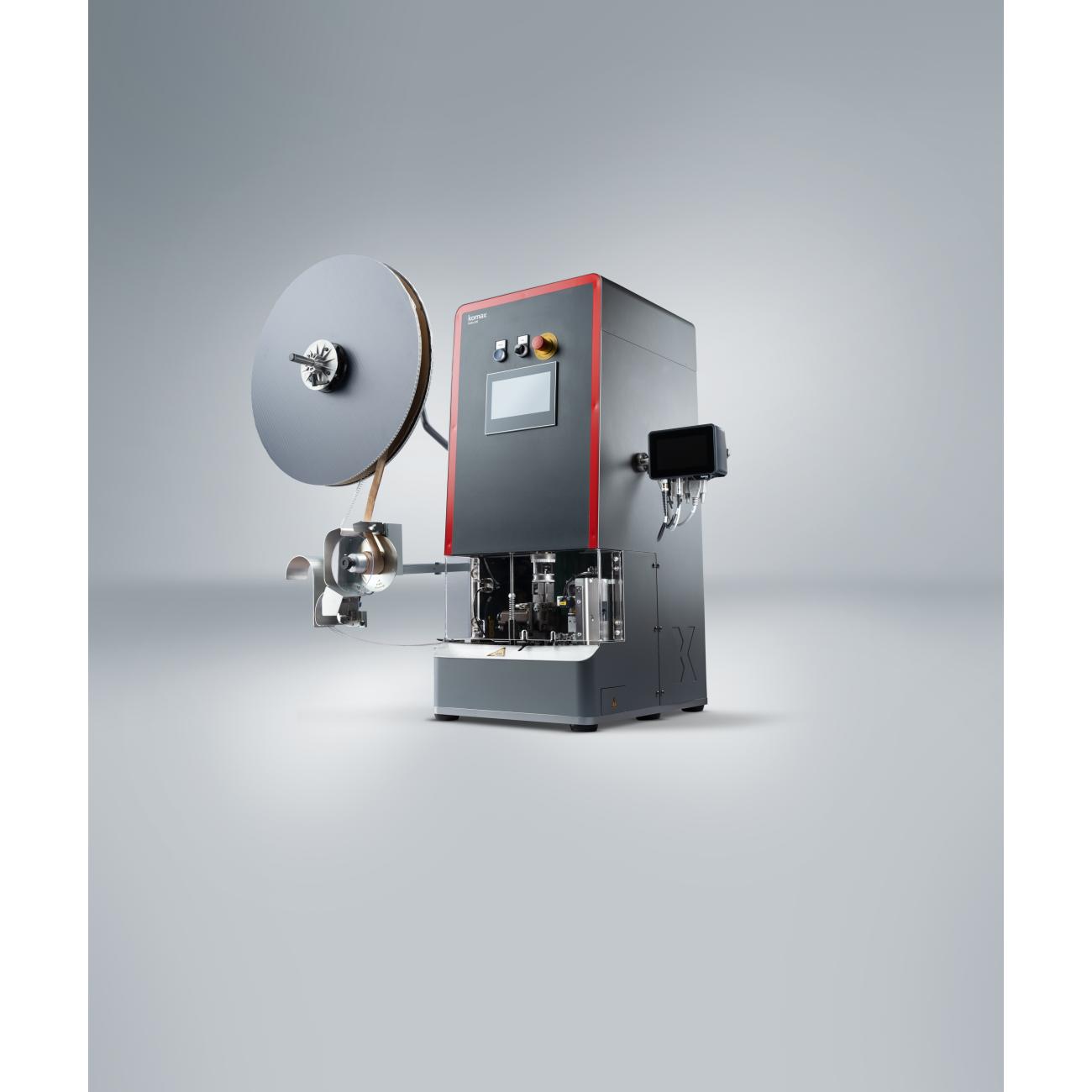

Komax - Stripper-Crimper Delta 520
KMX-Delta520
Multi-core benchtop stripper crimper
Komax - Stripper-Crimper Delta 520
KMX-Delta520
Multi-core benchtop stripper crimper
Contactez-nous
Besoin d'un devis, d'une installation ou d'une formation ?
Call +32 (0)14 42 44 01 or contactez nous
Nick Janssen
Product specialist
Description
The Delta 520 is a highly flexible and accurate BenchTop
stripping and crimping platform. This semi-automatic
machine meets all requirements for premium wire processing.
The stripping unit and crimp module are laid out in line
on the base of the machine. The user starts the process
by pushing the cable against a trigger sensor. The cable
clamp transports the cable through the machine, approaching
each unit, which treats the end of the cable. This ensures extremely precise positioning of the cable.
Additional components ensure optimum machine performance
and material handling. The machine can be
upgraded with optional components to improve the process
and to integrate quality control into the workflow.
Options
- Several application kits
- Crimp applicator (single or double crimp)
- Crimp force monitoring (single or double channel)
- Vision sensor for polarity control
- Terminal oiler
- Crimp Module Analyzer
- Crimp height measurement device
- Barcode scanner
- Remote access
- Table
Specifications
| Cable outer diameter | 3.2 – 6 mm |
| Dismantling length | Min. 7.8 mm |
| Strip length | Max. 12 mm |
| Wire cross section | 0.13 – 0.35 mm² (AWG 26 – 22) |
