GLW - Stripping Crimping Machine MC 40-1
GLW-006218

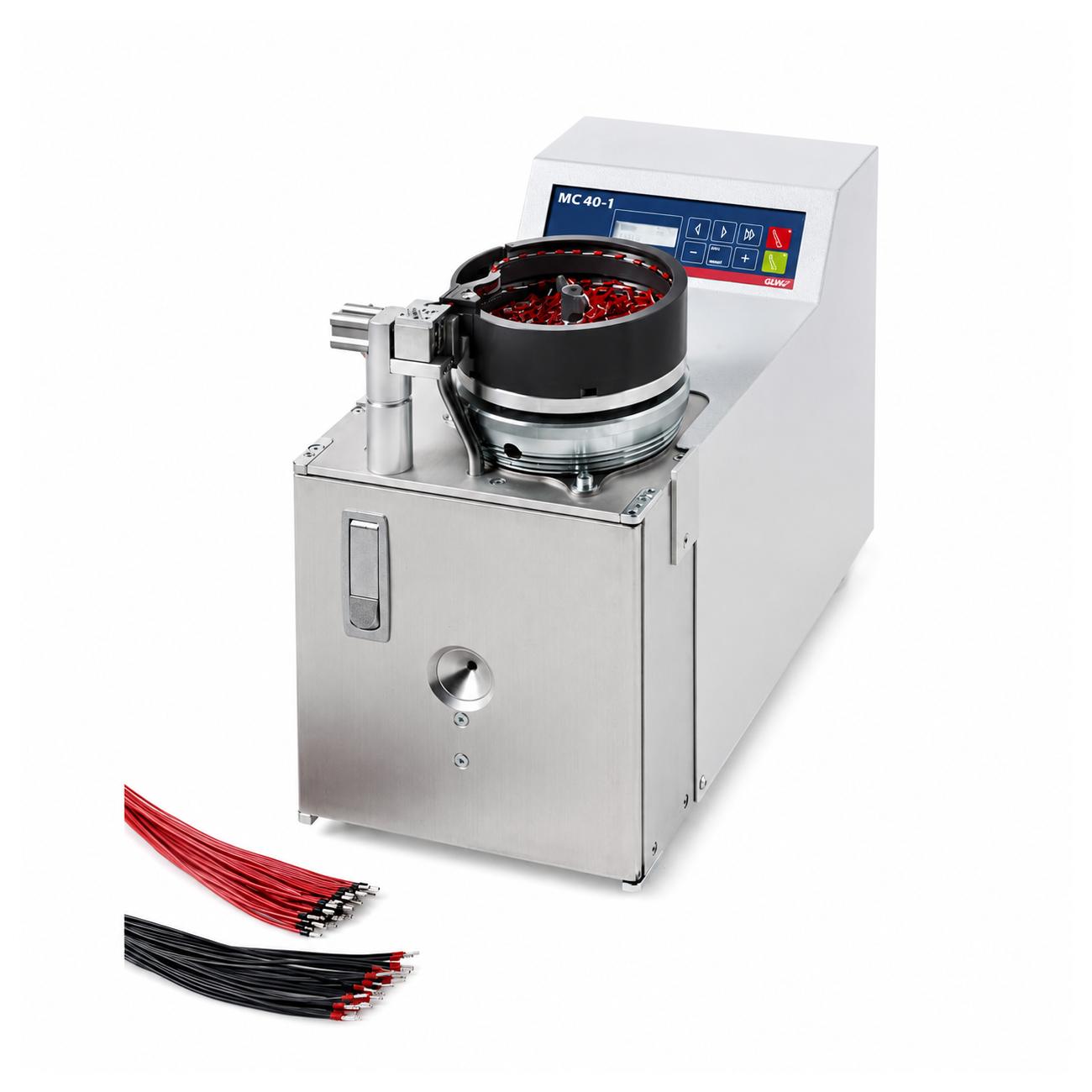

The electro-pneumatic stripping and crimping machine MC 40-1 reliably processes loose wire-end ferrules with plastic collars
GLW - Stripping Crimping Machine MC 40-1
GLW-006218
The electro-pneumatic stripping and crimping machine MC 40-1 reliably processes loose wire-end ferrules with plastic collars
Le prix initial était : €9.660,00.€9.182,00Le prix actuel est : €9.182,00. - In stock (10)
Besoin d'assistance, d'installation et/ou de formation ?
Appelez-nous +32 (0)14 42 44 01 ou contactez nous
Nick Janssen
Product specialist
Description
Tool kit (optional order)
- Tool Kit with Case 2,5mm² (GLW-006645)
The electro-pneumatic stripping and crimping machine MC 40-1 reliably processes loose wire-end ferrules with plastic collars. The MC 40-1 is equipped as standard with crimping tools with cross sections of 0.5-1.5 mm². Optional tool kits are available for cross sections 0.25-0.34/2.5/4 mm² and AWG conductors (thick insulation). The machine can be adjusted to the desired cross-section and crimping length in just a few simple steps. Stripping and crimping takes place in a single work step. When the crimping dies are changed, all variable parameters are automatically set correctly. – Quick cross-section change – Cost savings through processing of loose wire-end ferrules – Simple operation – 41 different wire-end ferrules processible (accessories required) – Length adjustment in just a few seconds
Specifications
| Cross-section range | AWG 20-16 (0.5-1.5 mm²) |
| Options | 0,25/0,34/2,5/4 |
| Crimping length | 6/8/10/12 mm |
| Cycle time | 1.2 s (Speedup 0.8 sec.) |
| Compressed air supply | 5 bar/0.5 MPa |
| Power supply | 110-240VAC/50-60Hz |
| Capacity | 70 W |
| Weight | 29 kg |
| Dimensions (LxWxH) | 550 x 250 x 412 mm |
Tool kit (optional order)
- Tool Kit with Case 2,5mm² (GLW-006645)
The electro-pneumatic stripping and crimping machine MC 40-1 reliably processes loose wire-end ferrules with plastic collars. The MC 40-1 is equipped as standard with crimping tools with cross sections of 0.5-1.5 mm². Optional tool kits are available for cross sections 0.25-0.34/2.5/4 mm² and AWG conductors (thick insulation). The machine can be adjusted to the desired cross-section and crimping length in just a few simple steps. Stripping and crimping takes place in a single work step. When the crimping dies are changed, all variable parameters are automatically set correctly. – Quick cross-section change – Cost savings through processing of loose wire-end ferrules – Simple operation – 41 different wire-end ferrules processible (accessories required) – Length adjustment in just a few seconds
| Type | Ferrule Processing |
|---|---|
| Max cross section (mm²) | 4 |
