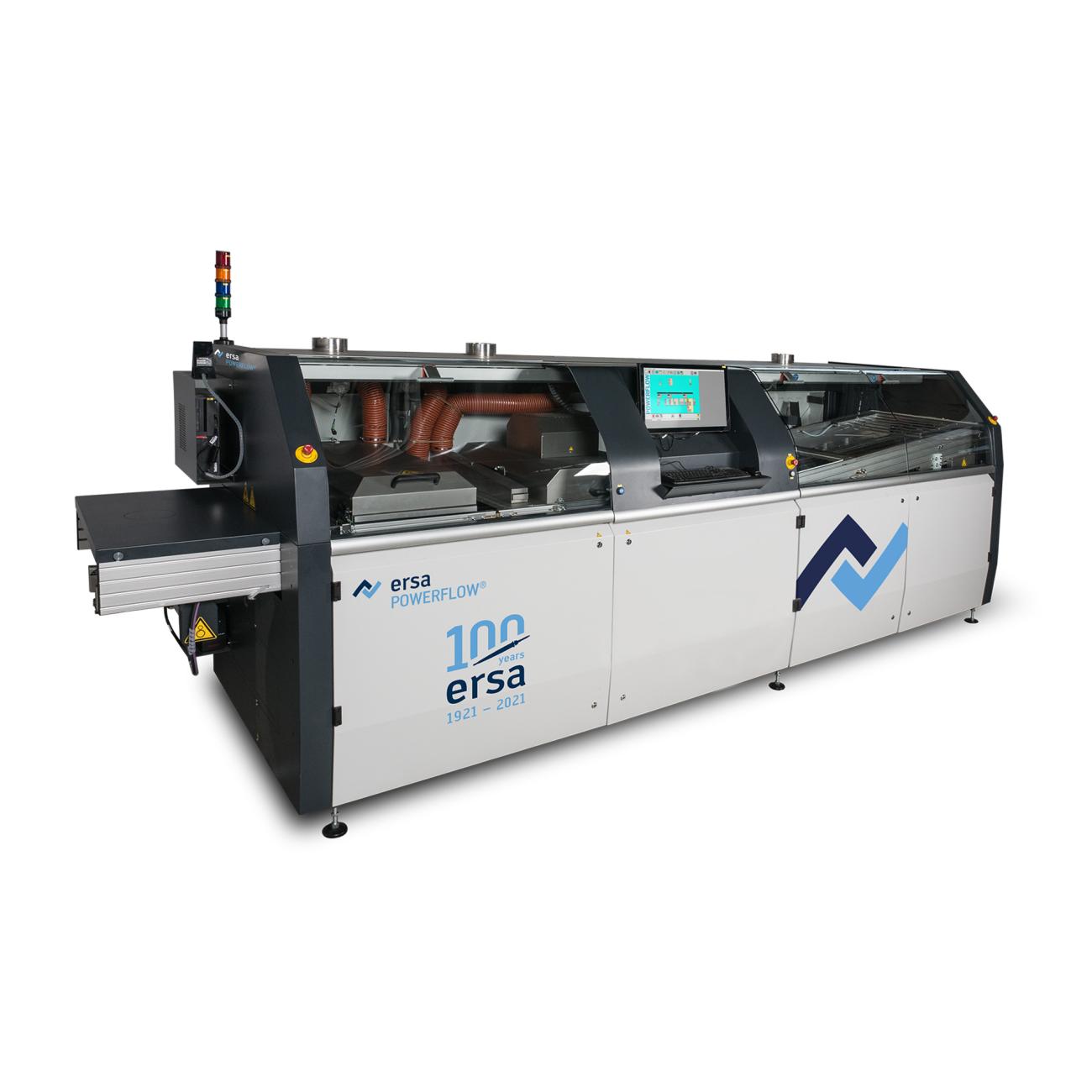

Ersa – Wave Soldering POWERFLOW
Beschrijving
‘- Modular, flexible and individually expandable preheating concept – can be configured variably in terms of length and output (can also be retrofitted)
– Monitoring and documentation of all process-relevant data > ready for traceability
Specifications
Type | Wave Soldering |
---|---|
Length (mm) | 1510 |
Height (mm) | 1565 |
Weight (kg) | 2200 |
Power | 400 V / 3 / N / PE – 50 Hz / 60 Hz |
Compressed air | yes |
Min. PCB length (mm) | 120 |
Min. PCB width (mm) | 60 |
Max. PCB length (mm) | 600 |
Max. PCB width (mm) | 508 |
Inline | Yes |
Max. conveyor cpeed (cm/min) | 250 |
Heating zones | Multiple possible |
Nitrogen | No |
