        Artikelnummer: 46167 Categorieën: ,
        komax
        Meer info

        Beschrijving

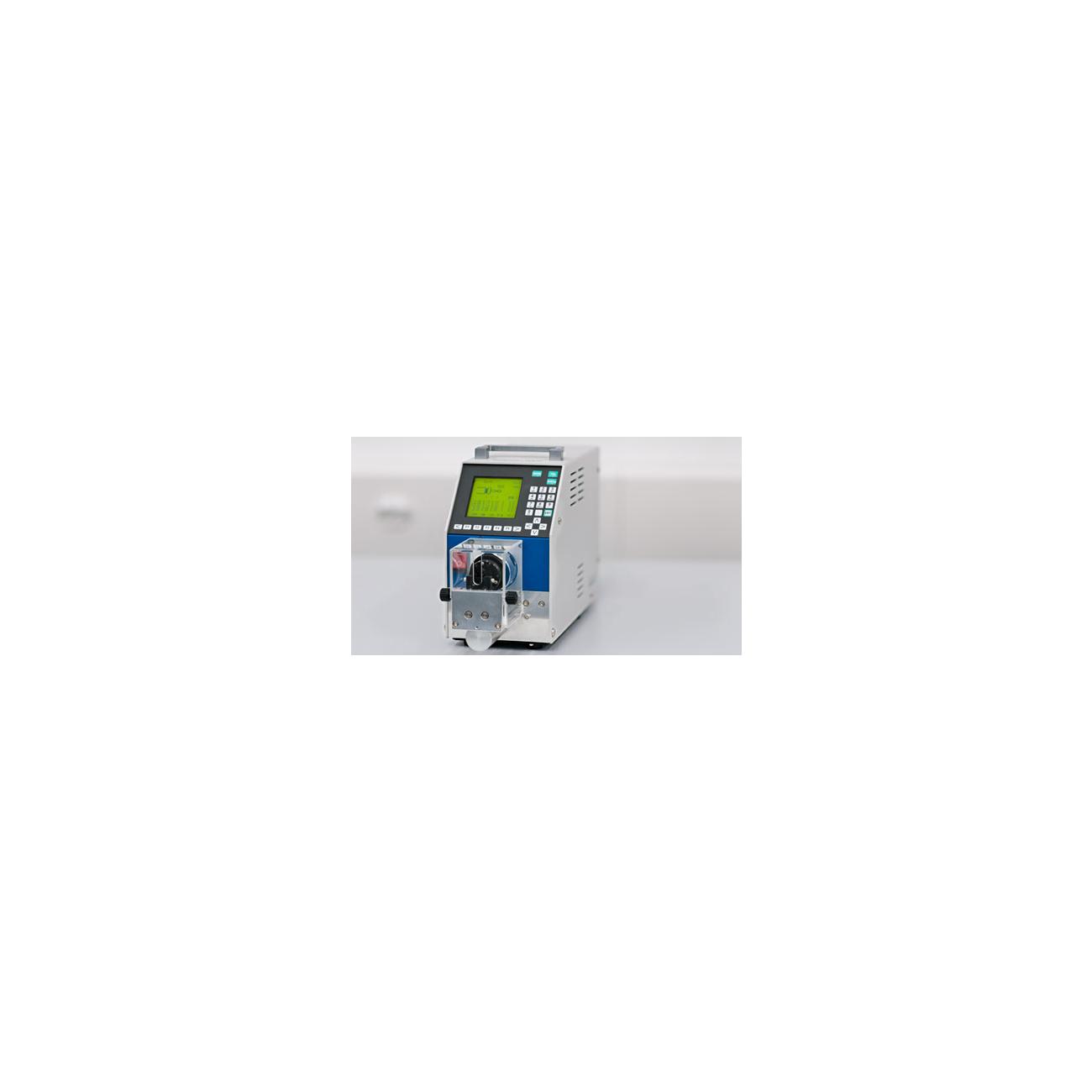

        The Cosmic 42R is the precision machine for multi-layered stripping of micro-coaxial cables. This stripping machine processes the finest conductors with speed and precision. Multi-step stripping involving up to 9 steps is part of the performance capabilities of the Cosmic 42R, as is its memory that accommodates 1000 data records.

        Area of application
        The Cosmic 42R stripping machine is used for micro-coaxial cables involving especially tough precision requirements. Cosmic 42R optimally processes coaxial cables, triaxial cables and cables with especially thin, hard or tough insulation.

        Conductors with braided insulation, e.g. polyester fibers, also belong to the processing range.

        The Cosmic 42R is ideal for a great diversity of products made in small to medium quantities.

        Rotating stripping head with centring
        The blade head of the Cosmic 42R is fitted with three blades and three centring units.
        Stripping with rotating blades and centring offers major advantages:
        – The centring unit positions the cable with precision.
        – The rotating blades cut the entire circumference of the insulation with precision.
        – The force needed for pull-off is reduced to a minimum.

        Multi-step stripping
        The Cosmic 42R strips multi-layered conductors in up to 9 steps. The processing steps can be programmed in any desired order. The cutting parameters can be independently set and optimised for every level. The Cosmic 42R has a memory that accommodates 1000 different conductors along with all processing parameters. Micro-coaxial connectors put the toughest demands on the precise processing of multilayered conductors. The Cosmic 42R carries out all cuts with ultra-precision and creates the best prerequisites for a top quality coaxial connection.

        Twisting conductor tips
        Twisting the tips of conductors prevents splayed stranded wires. The twisting function of the Cosmic 42R prepares the cable in an optimum way for being handled during assembly or tinning.

        Operation
        The operation of the Cosmic 42R is intuitive. The graphical display assists the operator with setting the processing parameters. Parameters such as the turning and feed speed, cut duration, pull-off speed etc. are presented in an straight-forward table.

        Specifications

        Type

        Strip
        Depth (mm)

        570
        Width (mm)

        140
        Height (mm)

        243
        Weight (kg)

        9.2
        Power

        240 VAC /50Hz / 60Hz
        Compressed air

        No
        Min. Cross-section (mm²)

        0.005
        Max. Cross-section (mm²)

        1.5
        Max. outside diameter (mm)

        2
        Inner conductor processing

        No
        Dual Head

        No
        Slit unit

        No
        Coax processing

        No
