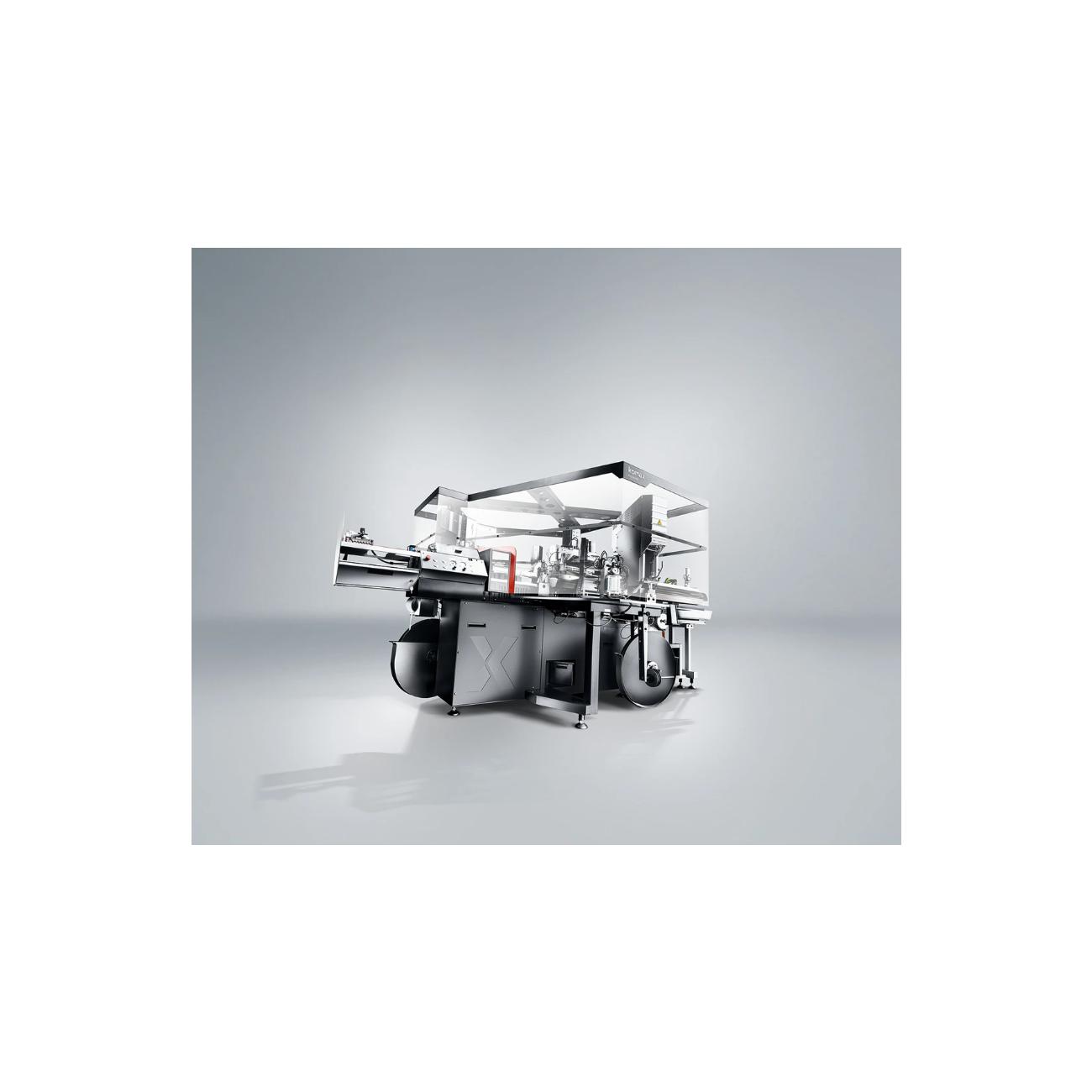

Komax – Wire Crimping machine ALPHA 565
Beschrijving
With seven process stations, the Alpha 565 wire processing machine offers plenty of space for special processing and individual processes. Customer-specific applications are easily and effectively integrated. Thanks to the modular machine design, even complex assembly processes such as dual core wire processing, ultrasonic solidifying or welding processes are possible. Elements such as the Y1582 twisting unit, the Y1585 fluxing and tinning module, the DC double gripper module, the AEH-LS ferrule module, the S1441 seal module and the selection of various crimp modules can be integrated individually. This means that the machine also meets changing and complex requirements. Accurate processing is ensured thanks to the CFA+/CFA, ACD and Q1250 quality process monitoring.
Specifications
Type | Fully Automatic Crimping |
---|---|
Length (mm) | 4080 |
Width (mm) | 1990 |
Height (mm) | 1790 |
Weight (kg) | 1400 |
Power | 480 V / 3 / N / PE – 50 Hz / 60 Hz |
Compressed air | yes |
