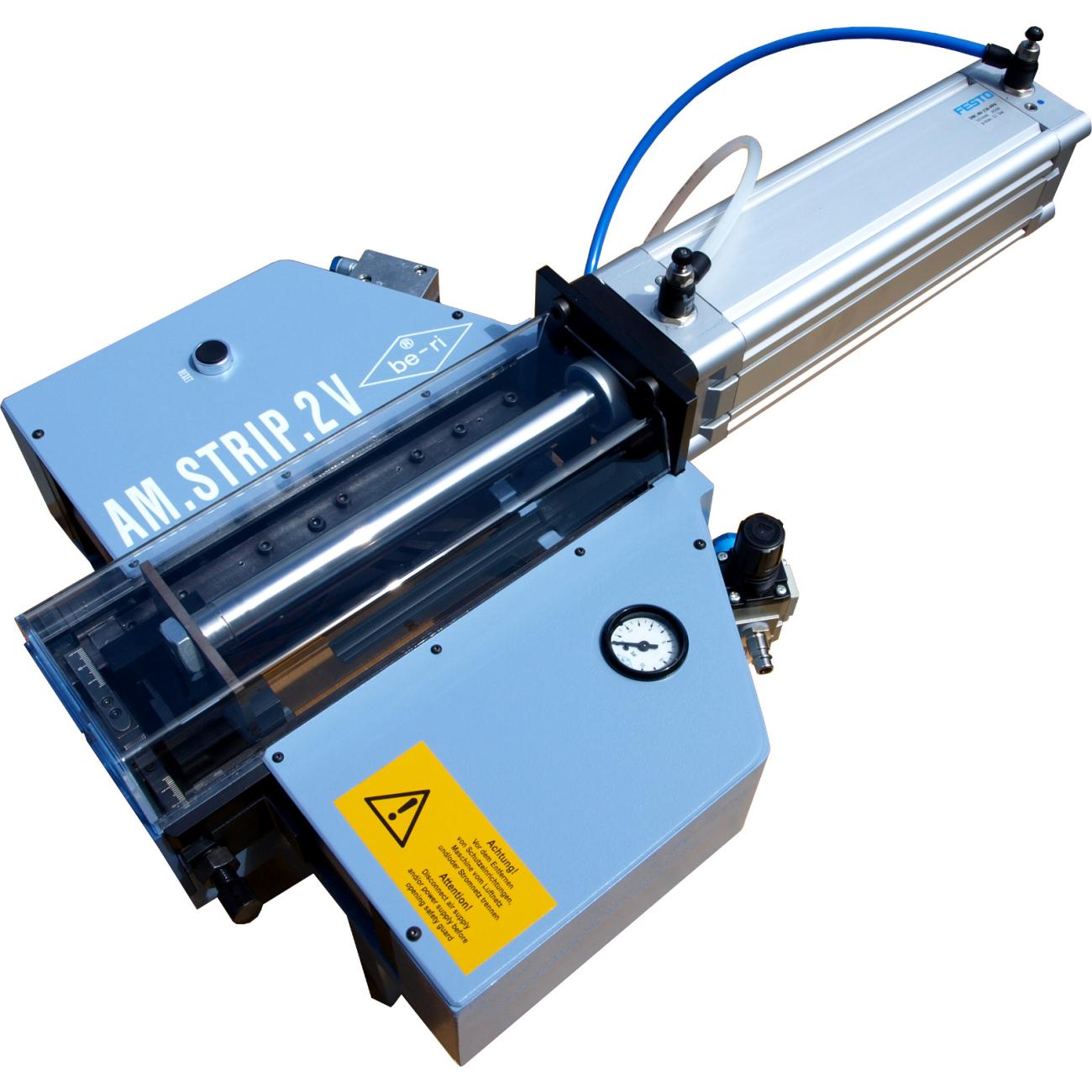

Rittmeyer – AM Strip 2V
Beschrijving
Outer diameter
– from 0.04“ (1,0 mm) up to 0.99” (25,0 mm)
Flat cable
– up to 1.38“ (35,0 mm) width
Stripping length *
– up to 9.06” (230,0 mm)
Partial stroke **
* Full stroke
** Unlimited stripping length (with extended stop in
partial stroke – depending from cable)
Optional Devices:
– Slitting device for slitting and stripping flat cables
– Special blade head constructions for graduated or 2step processing (tests and construction are necessary in our company)
– Stripping stop dog for greater stripping length (partial stripping)
– Stroke limitation for partial stripping and quicker working
– Pneumatic sensor
– Light barrier for very precise stripping results
Specifications
Type | Strip |
---|---|
Length (mm) | 430 |
Width (mm) | 550 |
Height (mm) | 235 |
Compressed air | yes |
Min. Cross-section (mm²) | 0.75 |
Max. outside diameter (mm) | 25 |
