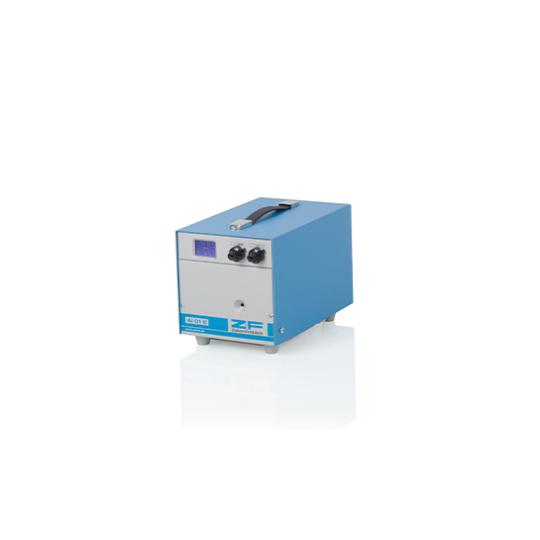

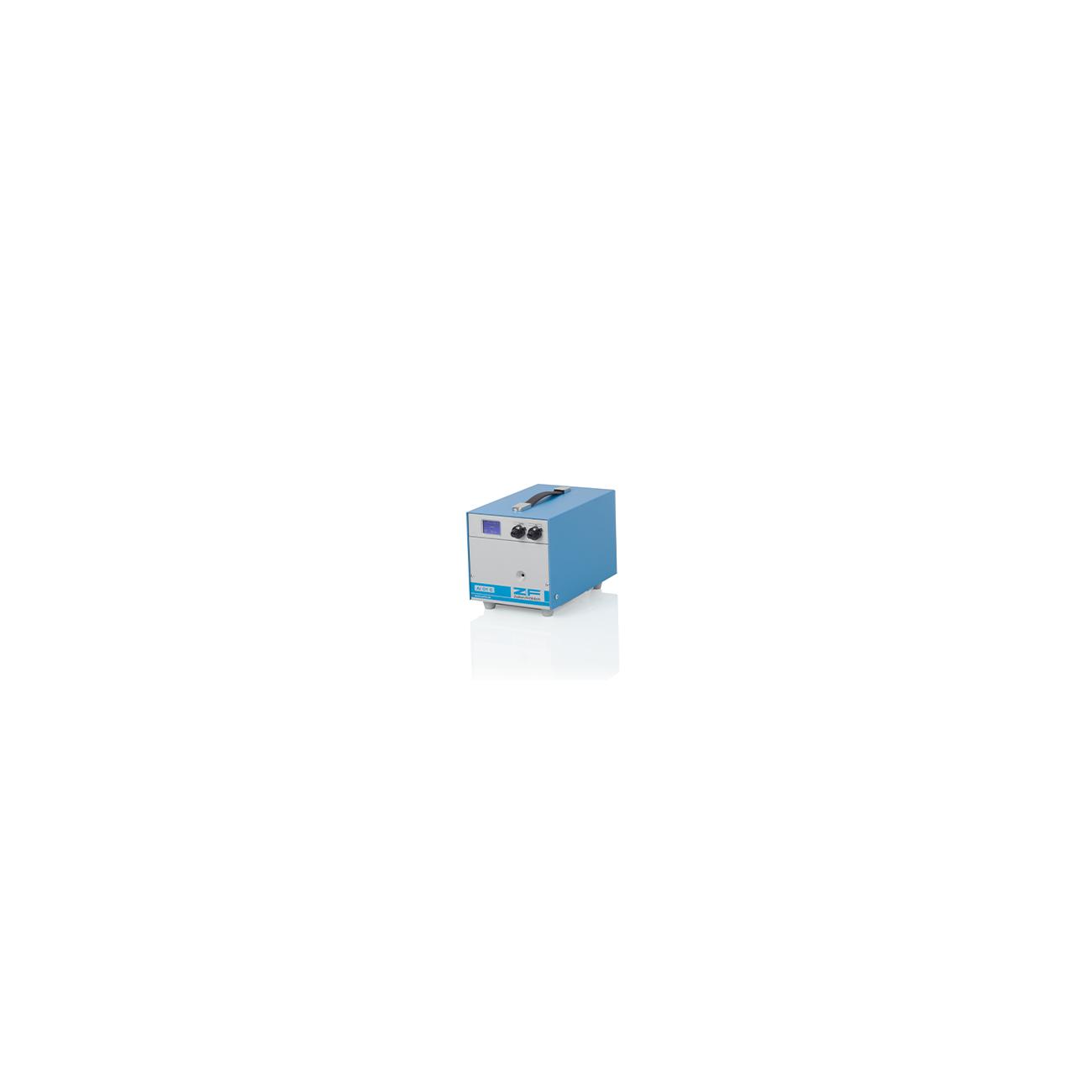

The basic model AI 01 is a stripping machine driven by an electric motor. Exact stripping of different insulated wires up to an outer diameter of 5 mm is possible. Adjustments are very easy to handle with an adjustmend knob. In addition a special funnel to infeed thin wires is also delivered. An integrated battery allows up to 10,000 working cycles when fully charged and without external power supply
Specifications
Type | Strip |
---|---|
Length (mm) | 190 |
Width (mm) | 295 |
Height (mm) | 190 |
Weight (kg) | 7.9 |
Power | 240 VAC /50Hz / 60Hz |
Compressed air | No |
Min. Cross-section (mm²) | 0.05 |
Max. Cross-section (mm²) | 6 |
Max. outside diameter (mm) | 5 |
Shortest wire lengths (mm) | 22 |
Inner conductor processing | No |
Dual Head | No |
Slit unit | No |
Coax processing | No |
