Beschrijving

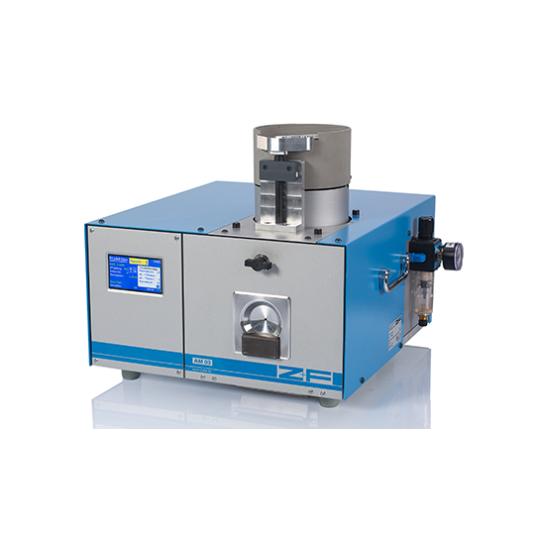

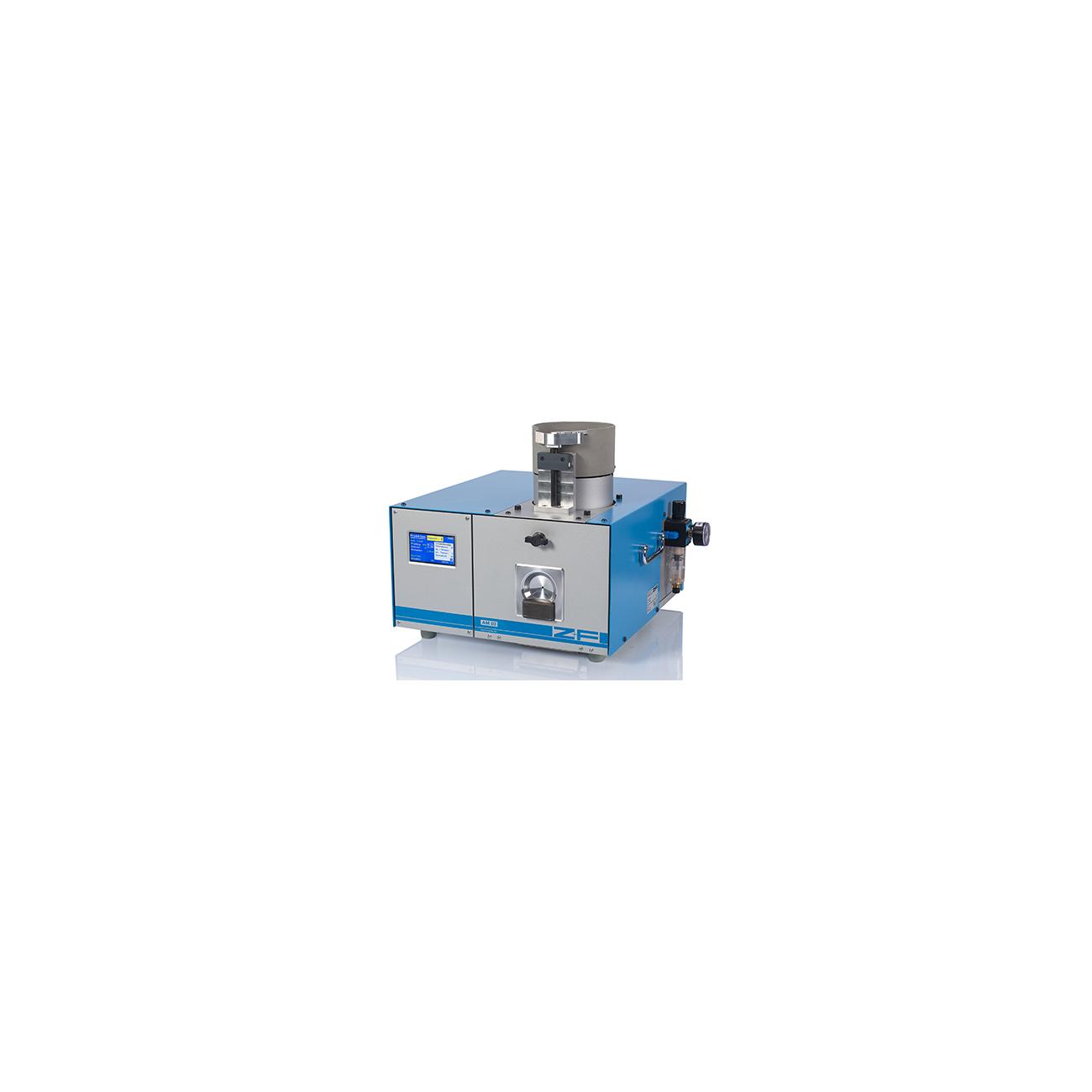

The AM 03 is an electropneumatic, modular stripper-crimper for rapid and reliable processing of loose male and female contacts. The contacts are automatically fed by a feeding bowl. The adjustment of the stripping and crimping depth is motoric. 50 different programs can be stored. Adjustment and programming is done with the touch display. The touch display shows all important data, functions and status. The machines may be adapted to different contacts and wires using the corresponding tools.
Options
• Adapter for special blades
• Special wire centralizer
• V-Radius blades
• Form blades
• Z+F crimp force monitor
• Other crimp forms: B-Crimp, hex
Specifications
Type | Strip and Crimp |
---|---|
Length (mm) | 530 |
Width (mm) | 500 |
Height (mm) | 460 |
Weight (kg) | 49 |
Power | 240 VAC / 50 Hz / 60 Hz |
Compressed air | yes |
Min. Cross-section (mm²) | 0.08 |
Max. Cross-section (mm²) | 2.5 |
Stripper | Yes |
