Beschrijving

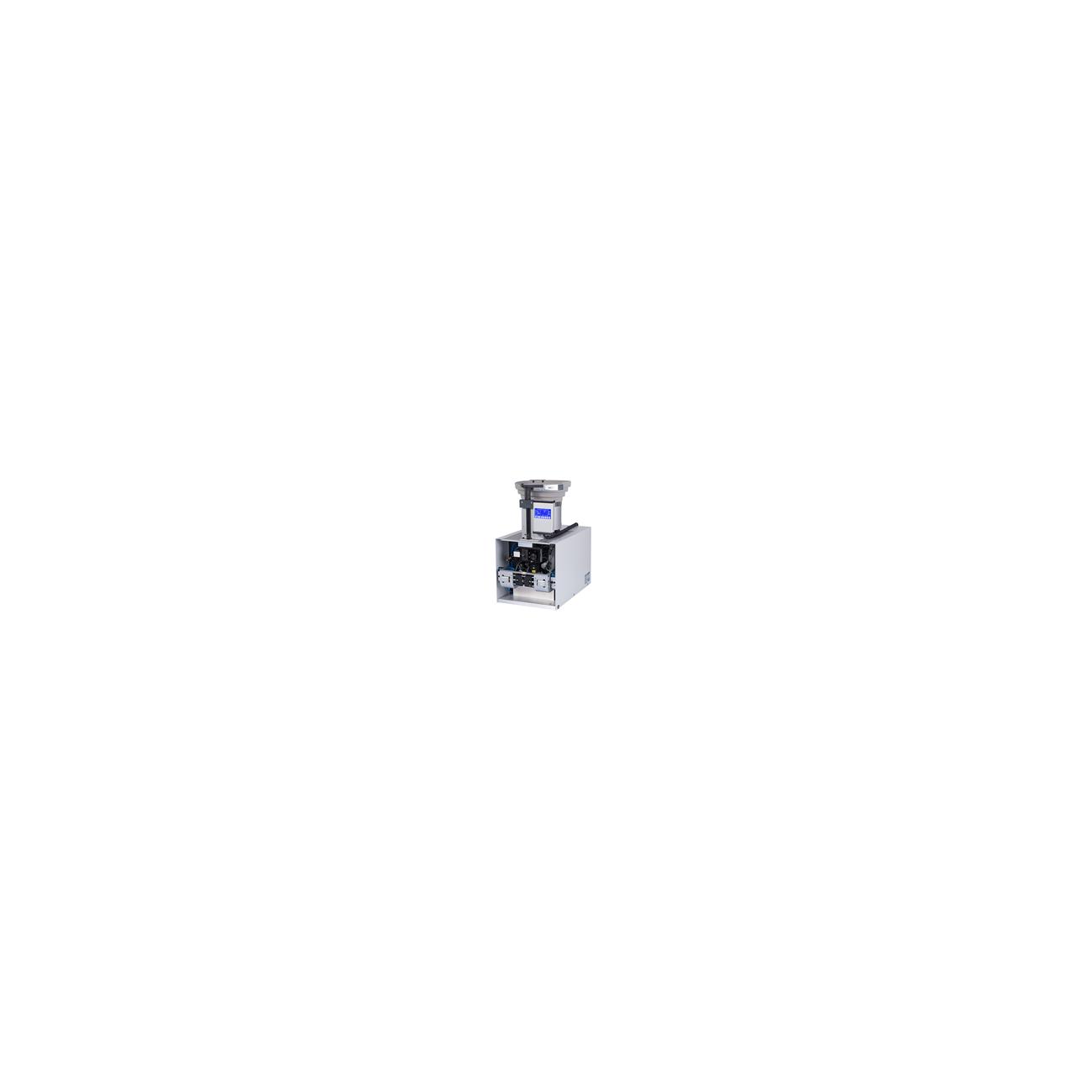

In the range of 0.08 up to 2.5 mm2 (AWG 28 – 14) wires and contacts can be crimped. Standard is a 4/8-indent crimp corresponding to MIL 22520. Optionally it is possible to adapt the machine for other crimpforms. The adjustment of the crimping-depth is motoric, 50 different programs can be stored. The machine can be converted for other contacts by using specific tool kits. All tools are easily replaceable.
Options
• Crimp force monitor
• Other crimp forms: 4-indent, B-Crimp
Specifications
Type | Crimp |
---|---|
Length (mm) | 260 |
Width (mm) | 460 |
Height (mm) | 510 |
Weight (kg) | 30 |
Power | 240 VAC / 50 Hz / 60 Hz |
Compressed air | yes |
Min. Cross-section (mm²) | 0.08 |
Max. Cross-section (mm²) | 2.5 |
Stripper | No |
