Z+F – SC 05 universal
Beschrijving

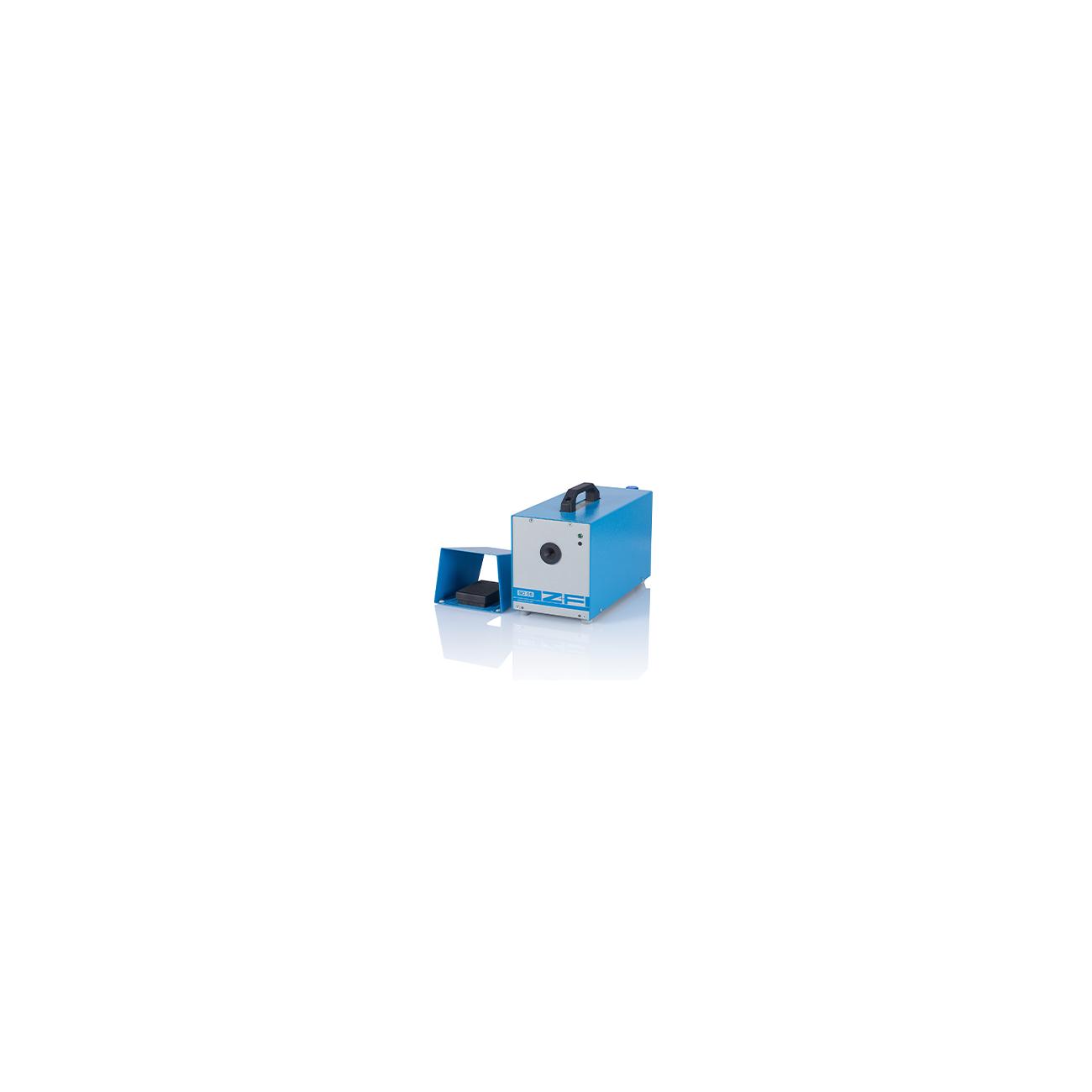

The machine is operated by a foot-switch. The sequence is monitored by a microprocessor control. With the integrated quadro-crimping-tool, ferrules in the cross-section range from 0.5 mm² up to 4 mm² (AWG 20 – 12) (insulated/uninsulated) and twin ferrules with plastic collar from 2 x 0.5 mm² to 2 x 2.5 mm² (AWG 2 x 20 – 2 x 14) and crimping lengths from 6 up to 18 mm can be crimped.
The crimper can easily be adapted to different cross-sections by turning the adjustments knob on the front cover of the machine. Other crimping forms or cross-sections are possible on request.
Specifications
Type | Crimp |
---|---|
Length (mm) | 165 |
Width (mm) | 405 |
Height (mm) | 240 |
Weight (kg) | 12 |
Power | 240 VAC / 50 Hz / 60 Hz |
Compressed air | yes |
Min. Cross-section (mm²) | 0.5 |
Max. Cross-section (mm²) | 4 |
Stripper | No |
