Description

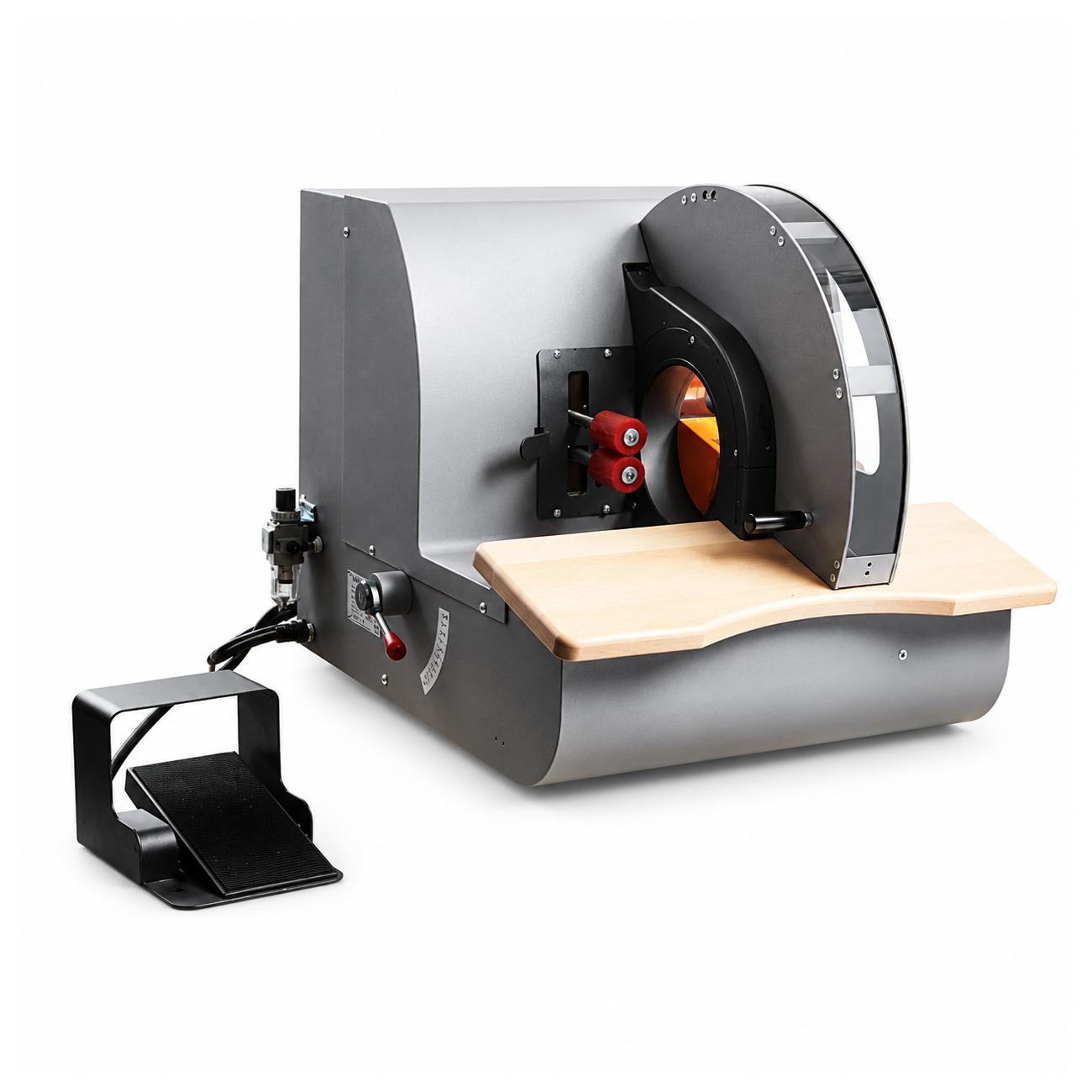

The KTR 10 is an attractive entry-level model which makes machine taping child’s play. the compact and operator-controlled taping machine is ideal for the production of simple wire harnesses without branches or with branches directly on the plug. Wires and long branches pre-fixed with spot tapes can also be taped quickly and precisely. The length of the tape is not limited – the KTR 10 specializes in processing meter-length wires. The roller pre-feed can be set from 0 to 70 millimeters per bundling head rotation. This ensures precise overlapping on request – with minimum operator influence. The start and end of the windings can be produced by opening the pre-feed. If the prefeed is set larger than the tape width, a saving tape is produced. The wire harness is wound in a spiral and formed. Simple, fast and economical: The winding speed of the KTR 10 is two to three times faster compared to hand-guided devices. The low consumption of material is also an advantage: The KTR 10 consumes up to 25 percent less tape than with manual taping. The classic taping device from Komax thus guarantees maximum productivity. – Excellent value for money – Simple operation and low training requirements – Compact, low-maintenance and reliable machine design – Maintenance of specified overlap through defined roll-feed – Consistent tape tension and guidance guarantee wrinkle-free taping compared to manual taping – Winding speed two to three times higher compared to manual devices – Up to 25 % material savings compared to manual processing – Economical processing of long cable harnesses with long branches – Significantly faster handling for longer cable harnesses compared to a closed winding head

Specifications
