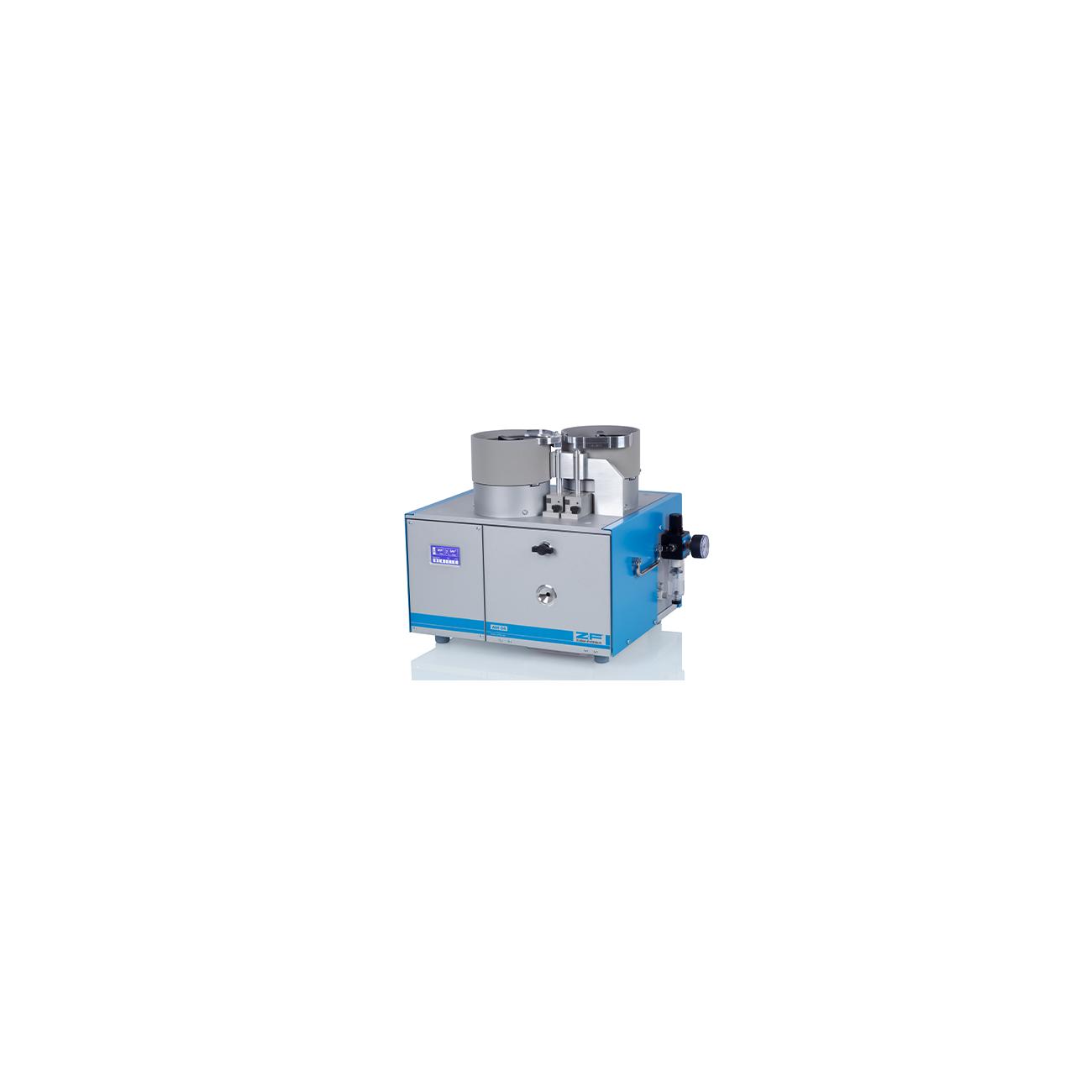

The AM 04 Duomatic is an electropneumatically driven automatic stripping and crimping machine. It allows the processing of insulated ferrules with diameters of 4.00 mm² (AWG 12) and 6.00 mm² (AWG 10) without changing the tool or the ferrules.
• Insulated ferrules with diameters of 4.00 mm² and 6.00 mm² and crimping lengths between 8 and 18 mm can be processed without long machine downtimes.
• The user selects the desired diameter on the touch-display and can begin with the production. The crimping lengths can be adjusted very fast due to its self-hanging contact holders.
• Adjustable stripping unit
• Application of high-quality V-Radium blades (3.49 mm)
• Tool unit with crimping tool to produce trapezium crimps
Special features
• No tool change necessary
• Two seperate feeding systems allow the processing of two different sized diameters with the same crimping length.
• Cross-section change via one click
• Worldwide unique functionality
Specifications
Type | Strip and Crimp |
---|---|
Length (mm) | 550 |
Width (mm) | 415 |
Height (mm) | 440 |
Weight (kg) | 40 |
Power | 240 VAC / 50 Hz / 60 Hz |
Compressed air | yes |
Min. Cross-section (mm²) | 4 |
Max. Cross-section (mm²) | 6 |
Stripper | Yes |
