Dual arm fume extraction system for electronics hand soldering processes.
Bofa - Solder Fume Extraction V 250
MSRSP-eaacf8c8
Dual arm fume extraction system for electronics hand soldering processes.
Hulp, installatie en/of training nodig?
Bel +32 (0)14 42 44 01 of neem contact met ons op
Beschrijving

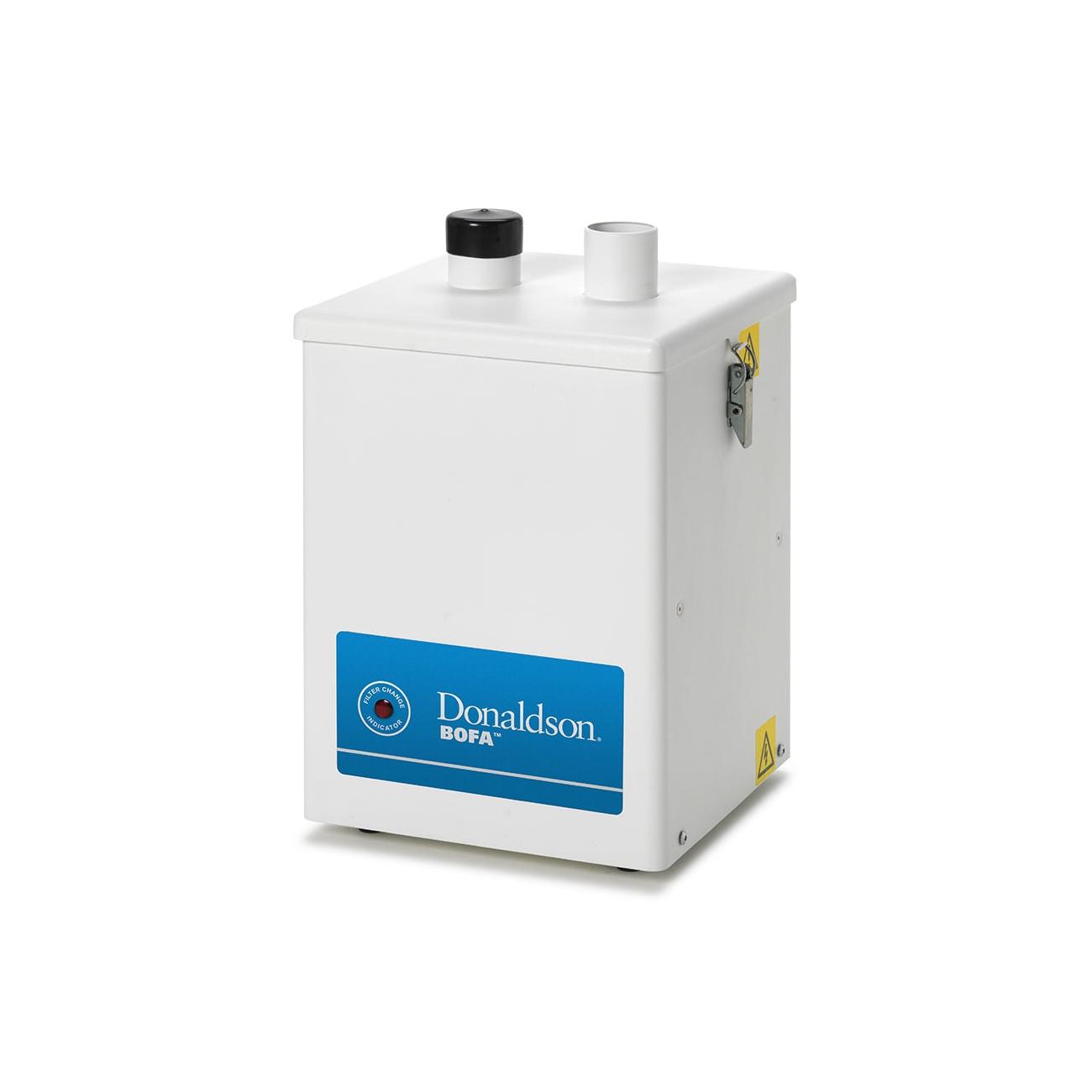

BOFA’s V 250 extraction unit has been designed to help capture fumes generated during hand soldering tasks. This portable system is offered in a number of configurations to cater for different factory layouts and contains everything required to set up two operators with ease.
Fast and easy installation allows this unit to be moved with the workbench when factory layouts need changing due to production demands. The unit’s low noise level and fully comprehensive filtration capabilities make it perfect for today’s electronics manufacturing environments.
Specifications
Dimensions (W x D x H) | 290 x 270 x 420 mm |
Cabinet construction | Powder coated mild steel |
Airflow / pressure | 180 m³/h / 30 mbar |
Electrical connection | 230V - 50/60 Hz |
Noise level | < 61 dB (A) |
Weight | 10 kg |
Duct size | 50 mm |
Max. duct run | 5 mtrs. |

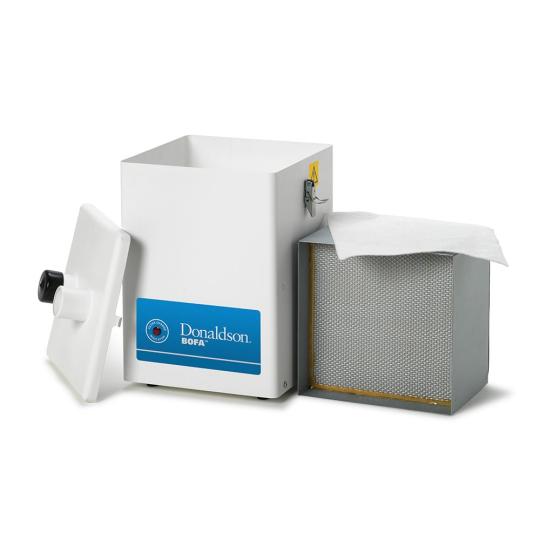

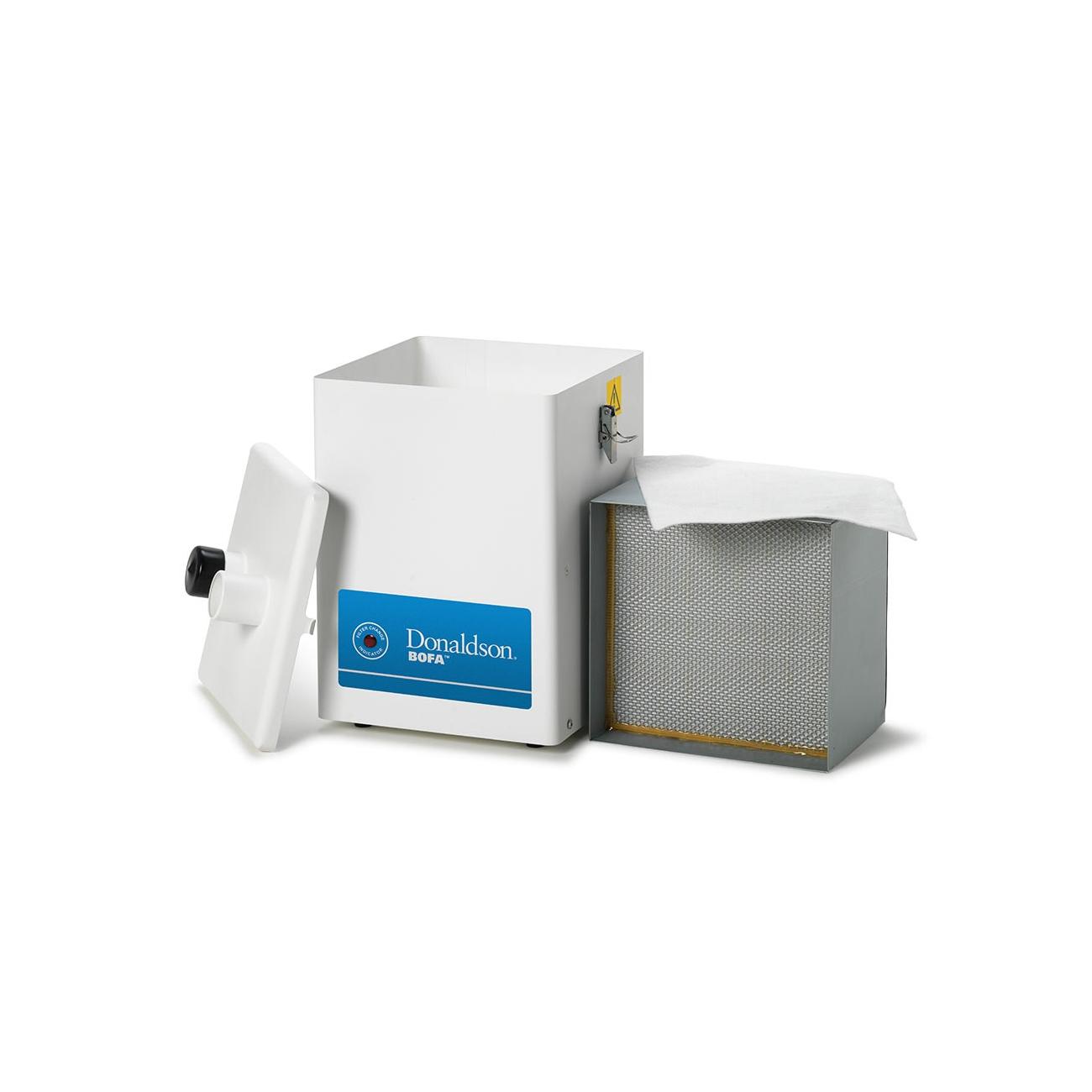

Filter media | Polypropulene (pre-filter) / Borosilicate (combined filter) |
Gas filter | Treated activated carbon |
Pre-filter efficiency | F7 |
Voltage | 115V or 230V |
Granulated carbon gas filter | |
Filter blocked indicator | |
Optional | Remote speed control and power switch / Wide selection of arms / Unique flip top flush sealing mounting plate / 2 x table mount installation kit and extraction arm |
BOFA’s V 250 extraction unit has been designed to help capture fumes generated during hand soldering tasks. This portable system is offered in a number of configurations to cater for different factory layouts and contains everything required to set up two operators with ease.
Fast and easy installation allows this unit to be moved with the workbench when factory layouts need changing due to production demands. The unit’s low noise level and fully comprehensive filtration capabilities make it perfect for today’s electronics manufacturing environments.
