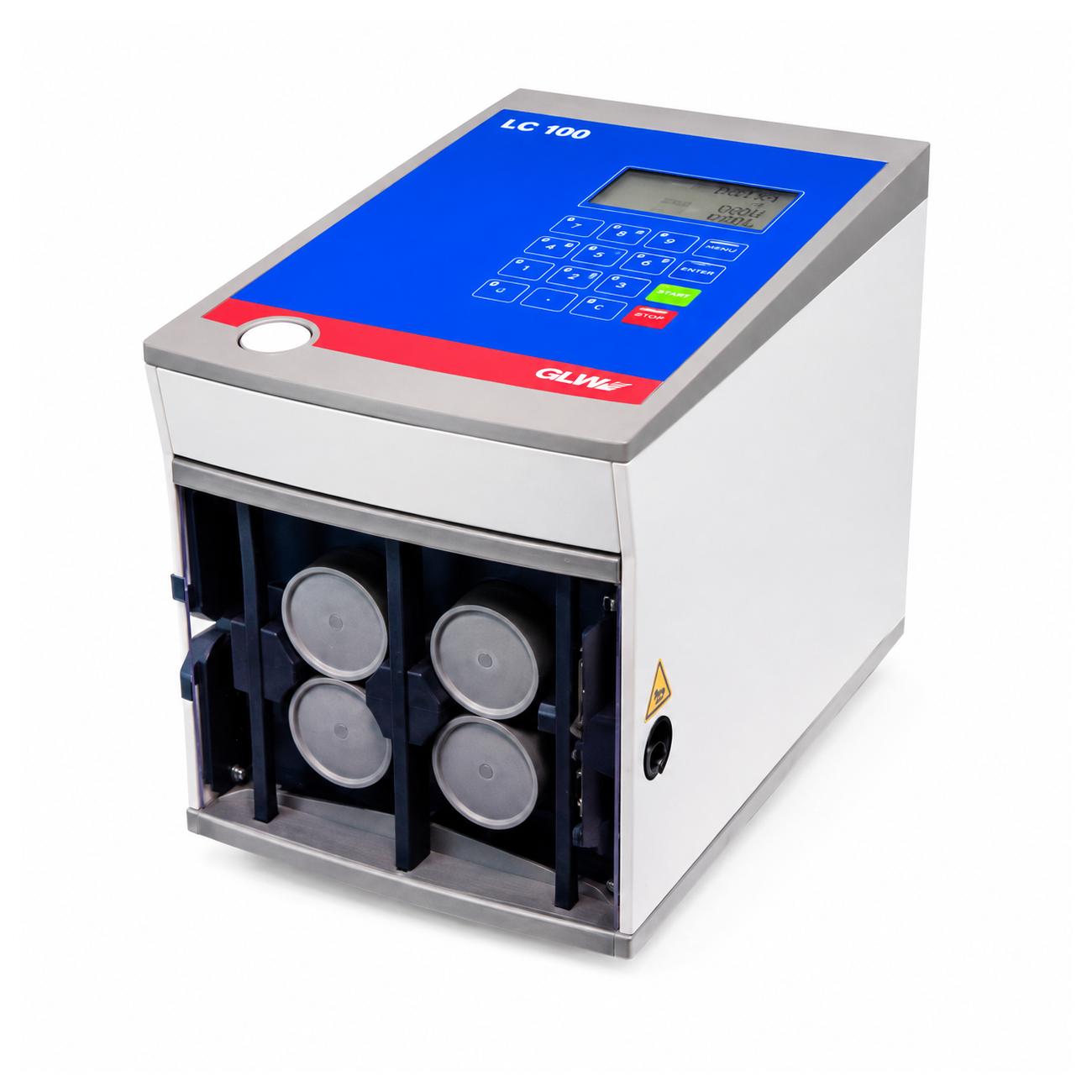

Wire Cutting Machine LC 100
The LC 100 electric cross cutting machine cuts strands and cables precisely and quickly.
Wire Cutting Machine LC 100
The LC 100 electric cross cutting machine cuts strands and cables precisely and quickly.
Beschrijving
The LC 100 electric cross cutting machine cuts strands and cables precisely and quickly. After inserting the cable, the measuring and transport rollers automatically adjust to the required diameter when the front flap is closed. Simply enter the desired length and quantity – the LC 100 does the rest. Using the supplied software, series orders can be easily pre-programmed on the PC. Repeat jobs can be saved as projects on the LC 100.
– Easy handling
– Time savings due to fast material change
– Automatic detection of the cable cross-section
– Perfect for mobile use
– High dimensional precision
Specifications
Type | Wire Cutting |
---|---|
Length (mm) | 301 |
Width (mm) | 228 |
Height (mm) | 194 |
Weight (kg) | 10 |
Power | 240 VAC /50Hz / 60Hz |
Compressed air | No |
Min. Cross-section (mm²) | 0.08 |
Max. Cross-section (mm²) | 10 |
Max. outside diameter (mm) | 8 |
Max, wire transport speed (m/s) | 0.5 |
Inner conductor processing | No |
Dual Head | No |
Slit unit | No |
Coax processing | No |
