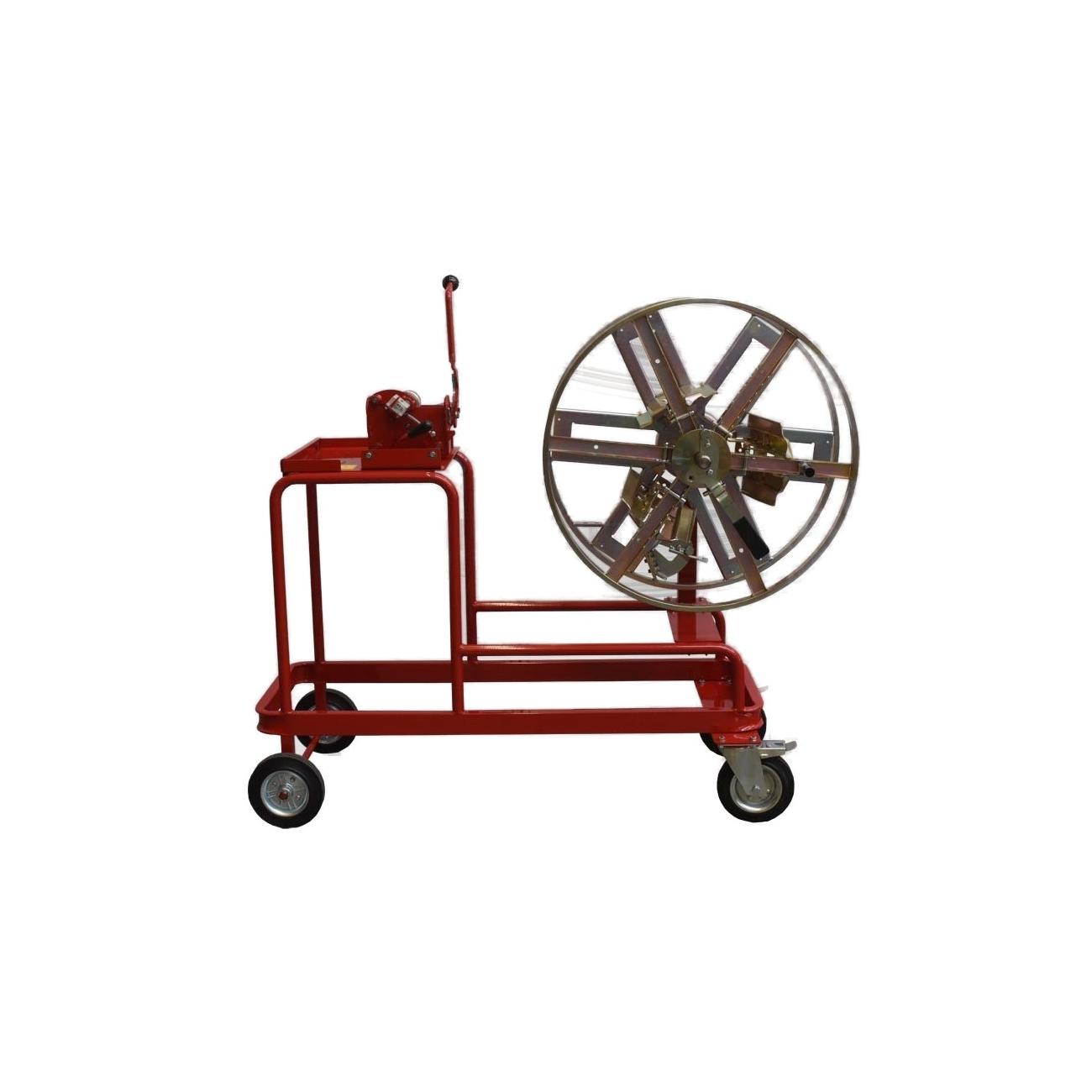

Nicoletti - Cable Coiler AS-19-R
NIC-AS19R
Hand-operated coiler for low workloads.
Price on request
Need assistance, installation and/or training?
Call +32 (0)14 42 44 01 or contact us
Description
- Coiling head Ø 800
- Self-locking wheels (two wheels and two castors)
- Cable measuring device max. Ø 35mm
- Manual cable cutter Ø 15mm
- Measuring accuracy ±1.5% on coated round cables
- Machine is hand operated
- Option of motorized version (Item no. ASM-16-R)
Specifications
Coiling head, coil core diameter | min. 320 mm - max. 620 mm |
Coiling head, coil width | min. 115 mm - max. 220 mm |
Coiling, coil diameter | max. 750 mm |
Load capacity | 250 kg |
Dimensions (H x W x L) | 1.114 x 750 x 1.500 mm |
Weight | 116 kg |
- Coiling head Ø 800
- Self-locking wheels (two wheels and two castors)
- Cable measuring device max. Ø 35mm
- Manual cable cutter Ø 15mm
- Measuring accuracy ±1.5% on coated round cables
- Machine is hand operated
- Option of motorized version (Item no. ASM-16-R)
Type | Rewinding Systems |
---|
