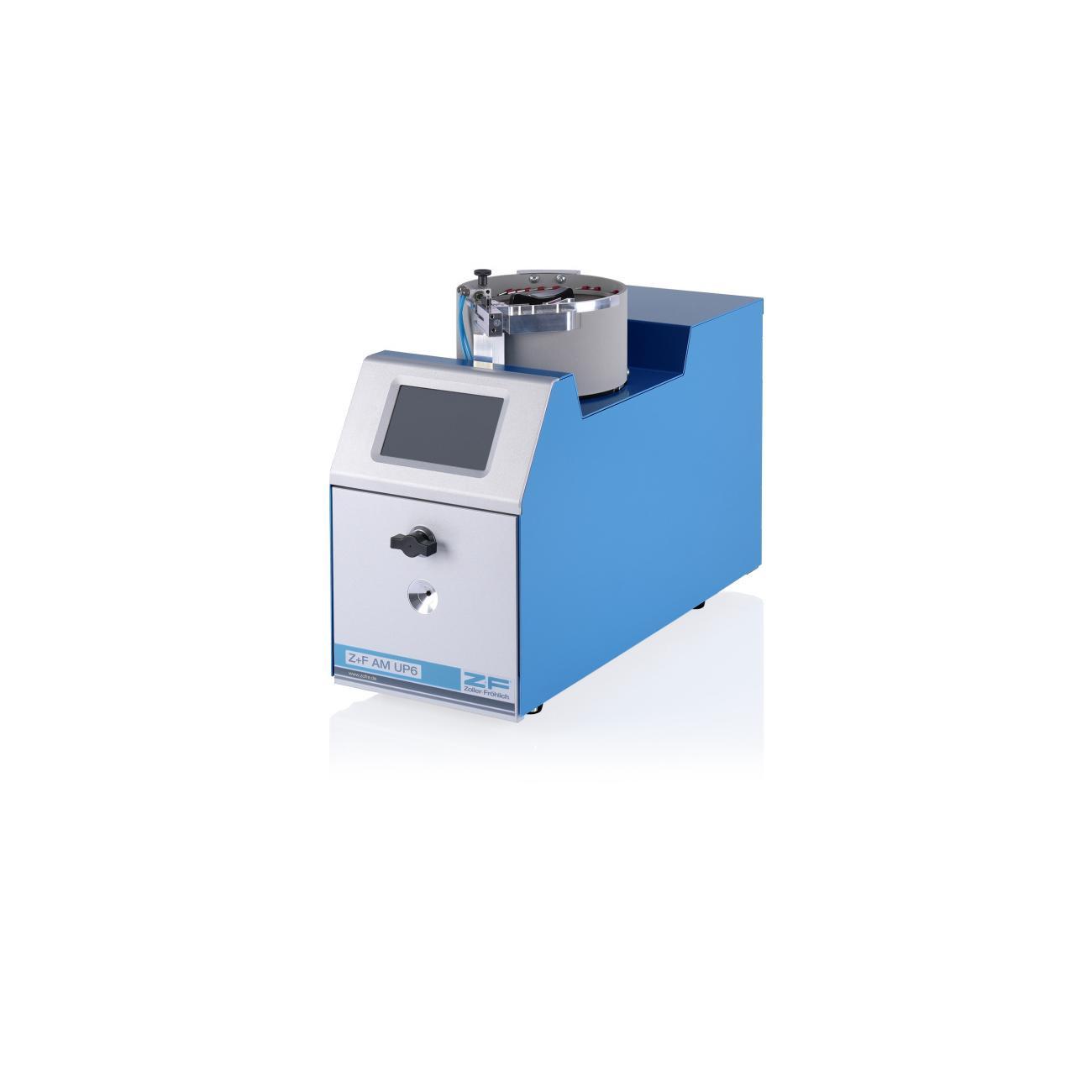

Z+F - Stripper-Crimper AM UP6
ZOL-V10AM000040
Electro pneumatic stripper-crimper for 9 cross-sections of your choice
Z+F - Stripper-Crimper AM UP6
ZOL-V10AM000040
Electro pneumatic stripper-crimper for 9 cross-sections of your choice
€8.563,71 / STK - 2 - 6 weeks
Need a quote, installation, or training?
Call +32 (0)14 42 44 01 or contact us
Nick Janssen
Product specialist
Description
This machine handles about 90% of all insulated ferrules used in control engineering and cable harnessing, covering 85 Z+F types. It processes loose insulated ferrules from 0.25 mm² to 6.00 mm² (AWG 24–10) with crimp lengths of 6, 8, 10, or 12 mm, using a trapezoidal crimp shape and a minimum insertion length of 25 mm plus the crimp length.
With a cycle time of roughly 1.2 seconds and stepless stripping-length adjustment via the display, it delivers fast, precise operation. Its communication capability allows easy integration into other systems, and it includes all core advantages of the Z+F AM series.
A compact design, no blade changes between cross-sections, and an attractive price ensure efficient use of space and a quick return on investment.
Specifications
| Crimping length | 6 / 8 / 10 / 12 mm |
| Crimp shape | trapezoid |
| Cross section range | 0.25 mm² - 6.00 mm² (AWG 24 – 10) |
| Cycle time | 1,2 s |
| Dimensions (W x D x H) | 197 mm x 560 mm x 365 mm |
| Infeed length (min.) | 25 mm + crimp length |
| Weight: | 23,5 kg |
