Schleuniger - Stripping Machine B300

SCHLEUN-100000668465

A programmable stripping machine for single-core, multi-core, and sensor cables up to 7 mm in diameter.
Prices cannot be combined with other discounts.

Sale!

Schleuniger - Stripping Machine B300

SCHLEUN-100000668465

A programmable stripping machine for single-core, multi-core, and sensor cables up to 7 mm in diameter.
Prices cannot be combined with other discounts.

Original price was: €4.810,18.Current price is: €4.461,00. / STK - In stock (2)

More information about leasing options

Hassle-free investing through business leasing

Looking to expand or upgrade your machinery park?
With Smans, it’s easy — from manual machines to fully automated production lines.



We partner with trusted leasing providers offering flexible and transparent financing solutions.
Together, we assess the value and goals of your project.

Benefits of leasing with Smans:

  • Preserve liquidity and financial flexibility
  • Suitable for both small and large investments
  • Boost growth and increase capacity without upfront purchase
  • Strengthen your competitive edge with an up-to-date machine park


Do you want to know what business leasing can do for your company? Contact team Smans.

    Would you like to know what business leasing could mean for your project? Our sales team will be happy to answer all your questions!



    • Independent expertise
    • Customers give us a 9+
    • Extensive offer
    • More than 50 years of experience

    Need a quote, installation, or training?
    Call +32 (0)14 42 44 01 or contact us

    Contact us

    In need direct contact with a sales representative?

    Nick Janssen

    Product specialist

    +31 0612345678

      Or leave your details and we will contact you as soon as possible.


      • Independent expertise
      • Customers give us a 9+
      • Extensive offer
      • More than 50 years of experience
      • Independent expertise
      • Customers give us a 9+
      • Extensive offer
      • More than 50 years of experience
      SKU: SCHLEUN-100000668465 Categories: , , ,

      Description

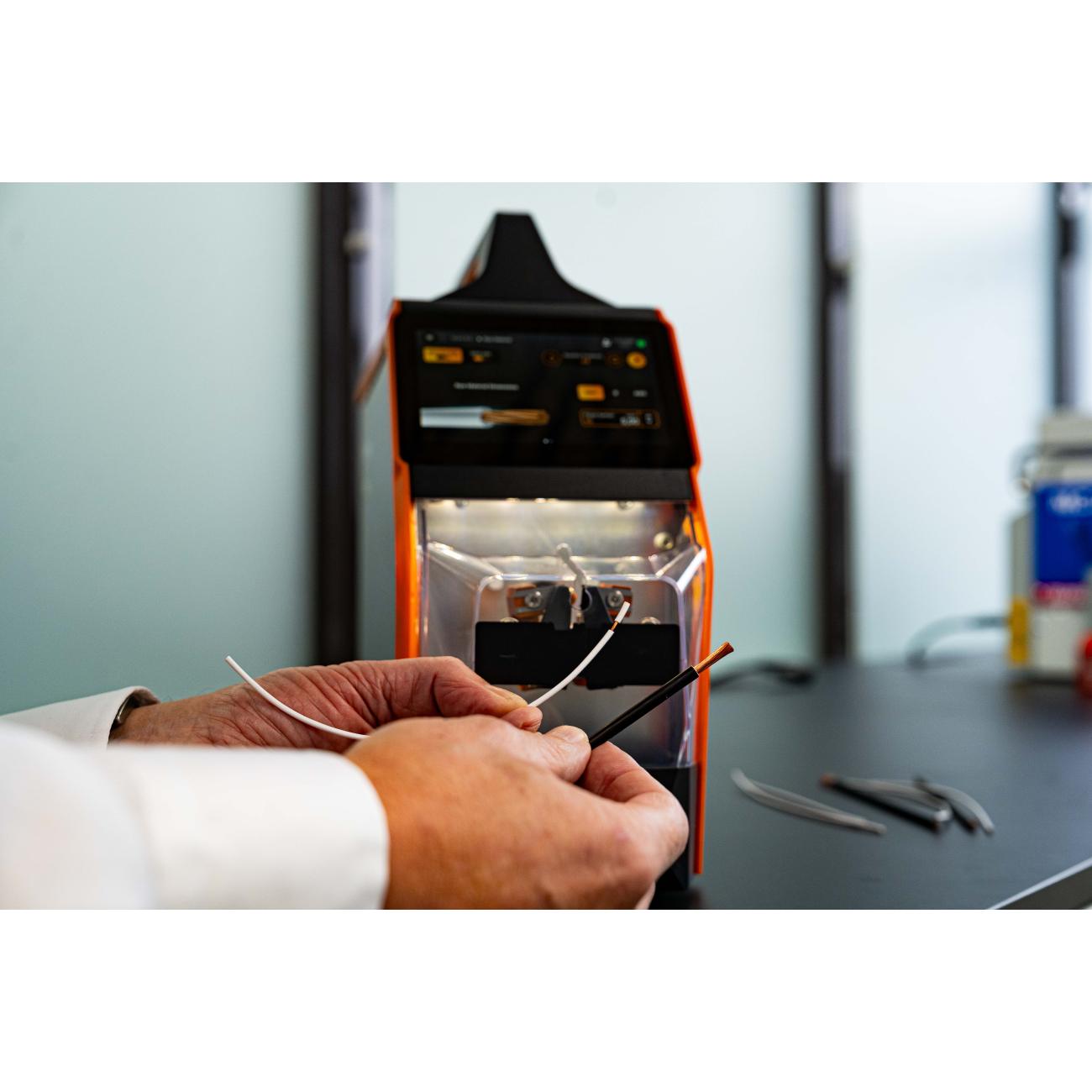

      The Schleuniger B300 is a powerful and user-friendly stripping machine that excels in speed, accuracy and reliability. Developed for a wide range of cable types – from single-core and multi-core cables to sensor and fibre optic cable sheaths – this machine combines mechanical precision with intuitive programming via a 5″ colour touchscreen.

      The B300 processes cable cross-sections from 0.03 to 8 mm² (AWG 32–8) and diameters up to 7 mm, with a maximum stripping length of 50 mm and pull-off length of 30 mm.

      Thanks to the highly sensitive trigger sensor, the stripping process starts automatically as soon as the cable touches the sensor surface, ensuring a smooth workflow without any additional steps.

      With its permanent shaft monitoring for quality control, no need for blade replacement and large waste container, the B300 minimises downtime and increases production speed. The optional software upgrade adds features such as multiple pull-off, sequential stripping of multi-core cables and barcode recognition for item management.

      Machine configuration

      • Clamping jaw Set Standard
      • V-Blade set HSS
      • Standard Packaging

      Specifications

      Air connection6 bar (with optional Air Kit)
      Conductor cross-section0.03–8 mm² (AWG 32–8)
      Max. cable diameter7 mm
      Power supply100 – 240 V AC, 50/60 Hz
      Pull-off lengthmax. 30 mm
      Stripping lengthmax. 50 mm

      Downloads

      Download Schleuniger B300

      The Schleuniger B300 is a powerful and user-friendly stripping machine that excels in speed, accuracy and reliability. Developed for a wide range of cable types – from single-core and multi-core cables to sensor and fibre optic cable sheaths – this machine combines mechanical precision with intuitive programming via a 5″ colour touchscreen.

      The B300 processes cable cross-sections from 0.03 to 8 mm² (AWG 32–8) and diameters up to 7 mm, with a maximum stripping length of 50 mm and pull-off length of 30 mm.

      Thanks to the highly sensitive trigger sensor, the stripping process starts automatically as soon as the cable touches the sensor surface, ensuring a smooth workflow without any additional steps.

      With its permanent shaft monitoring for quality control, no need for blade replacement and large waste container, the B300 minimises downtime and increases production speed. The optional software upgrade adds features such as multiple pull-off, sequential stripping of multi-core cables and barcode recognition for item management.

      Machine configuration

      • Clamping jaw Set Standard
      • V-Blade set HSS
      • Standard Packaging

      Max cross section (mm²)
      Max outer diameter (mm)
      Max stripping length (mm)
