Komax Taping - Taping Tool KTHB Micro

KAB-99004

KTHB Micro: Compact and Efficient Taping System for Wire Harnesses

Komax Taping - Taping Tool KTHB Micro

KAB-99004

KTHB Micro: Compact and Efficient Taping System for Wire Harnesses

€1.062,14 - Not in stock

Worry-free investing through business leasing

Do you want to expand or replace your machine park? This is possible via Smans. Consider a manual, semi-automatic machine or a fully automated production line. We work together with reliable leasing partners. They offer flexible and reliable tailor-made business financing solutions.

We always first identify the value of your project and your objectives.

Thanks to our expertise, we offer our leasing partners a lot of clarity. They can therefore make a better risk assessment than standard providers

The benefits of leasing through Smans:

  • financial space/maintenance of liquid assets;
  • for both large and small investments;
  • promote your growth and increase your capacity;
  • strengthen your competitive position through an up-to-date machine park.

Do you want to know what business leasing can do for your company? Contact team Smans.

    Would you like to know what business leasing could mean for your project? Our sales team will be happy to answer all your questions!


    • Independent expertise
    • Customers give us a 9+
    • Extensive offer
    • More than 45 years of experience

    Need assistance, installation and/or training?
    Call +32 (0)14 42 44 01 or contact us

    Contact us

    In need direct contact with a sales representative?

    Nick Janssen

    Product specialist

    +31 0612345678

      Or leave your details and we will contact you as soon as possible.

      • Independent expertise
      • Customers give us a 9+
      • Extensive offer
      • More than 45 years of experience
      • Independent expertise
      • Customers give us a 9+
      • Extensive offer
      • More than 45 years of experience
      SKU: KAB-99004 Categories: , ,
      Komax Taping

      Description

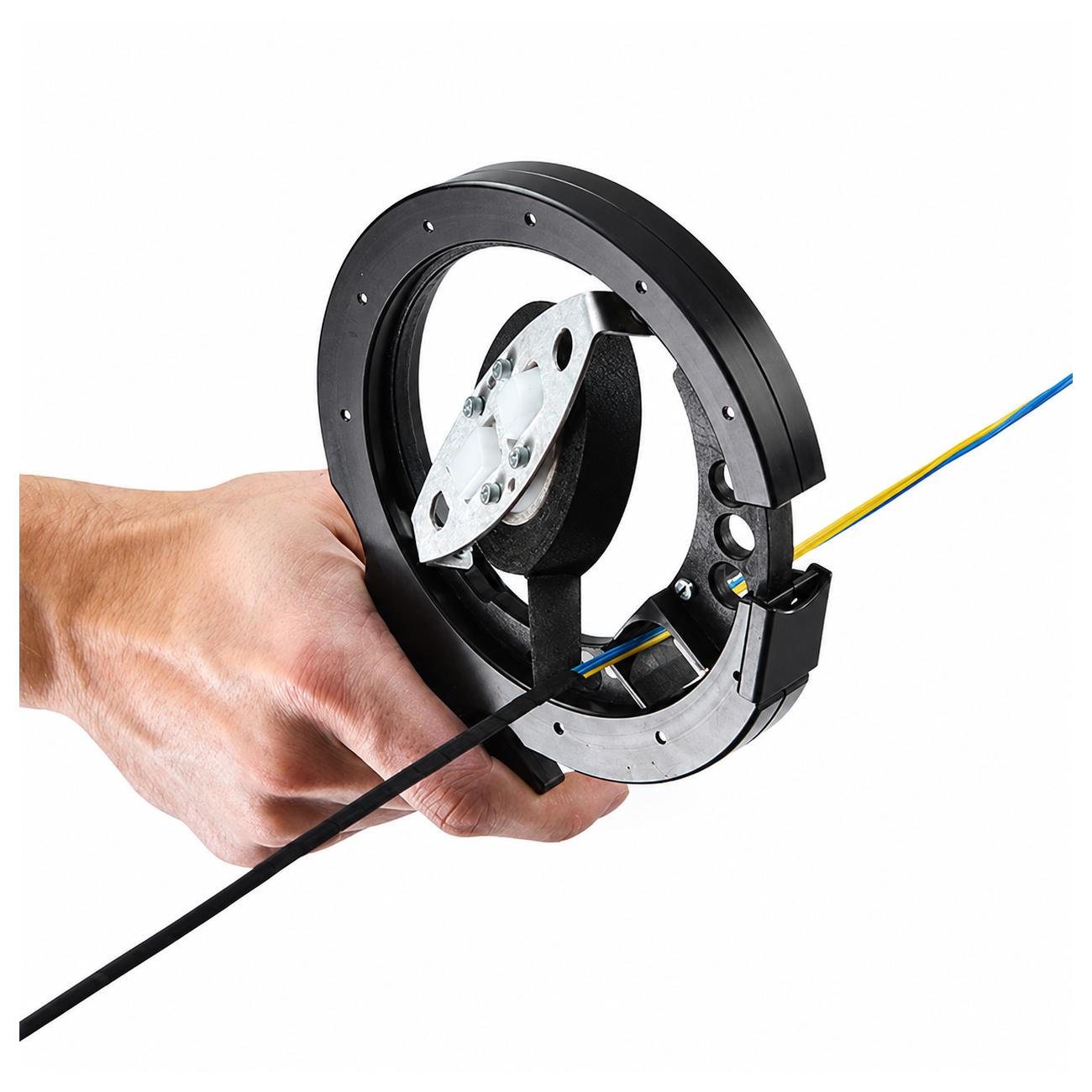

      The KTHB Micro makes taping and spot-taping incredibly simple, even on an assembly board. This system ensures reproducible quality, unlike manual taping.

      How it works:

      1. Place the device on the wire, and with a rotating motion, the tape is applied.
      2. After taping, simply pull the machine off, and the tape is cut at the push of a button.
      3. Immediately ready for the next use, with no wrinkles or folds, thanks to constant tape tension.

      The KTHB Micro is a compact, lightweight, and user-friendly entry-level model, perfect for:
      ✔ Wire harness production on a routing panel
      ✔ Small batches and prototypes
      ✔ Efficient spot-taping and short taping applications

      Features and Functionalities

      ✔ Higher rotation speed with continuous hand movement
      ✔ Integrated cutting mechanism
      ✔ Handles tape widths up to 19 mm with a core diameter of 38 mm
      ✔ Consistent tape tension and guidance for wrinkle-free taping
      ✔ Hand-controlled process for maximum precision

      The KTHB Micro is a cost-effective solution that reduces production time and significantly improves the quality of manual wire harness assembly.

      Specifications

      Tape width9 - 19 mm
      Tape core diameter38 mm
      Required distance between harness and board120 mm
      Taping diameter3 - 20 mm
      Dimensions (W x H x D)35 x 250 x 160 mm
      Weight0,38 kg

      Downloads

      Download KTHB Mini-E.pdf

      The KTHB Micro makes taping and spot-taping incredibly simple, even on an assembly board. This system ensures reproducible quality, unlike manual taping.

      How it works:

      1. Place the device on the wire, and with a rotating motion, the tape is applied.
      2. After taping, simply pull the machine off, and the tape is cut at the push of a button.
      3. Immediately ready for the next use, with no wrinkles or folds, thanks to constant tape tension.

      The KTHB Micro is a compact, lightweight, and user-friendly entry-level model, perfect for:
      ✔ Wire harness production on a routing panel
      ✔ Small batches and prototypes
      ✔ Efficient spot-taping and short taping applications

      Features and Functionalities

      ✔ Higher rotation speed with continuous hand movement
      ✔ Integrated cutting mechanism
      ✔ Handles tape widths up to 19 mm with a core diameter of 38 mm
      ✔ Consistent tape tension and guidance for wrinkle-free taping
      ✔ Hand-controlled process for maximum precision

      The KTHB Micro is a cost-effective solution that reduces production time and significantly improves the quality of manual wire harness assembly.
