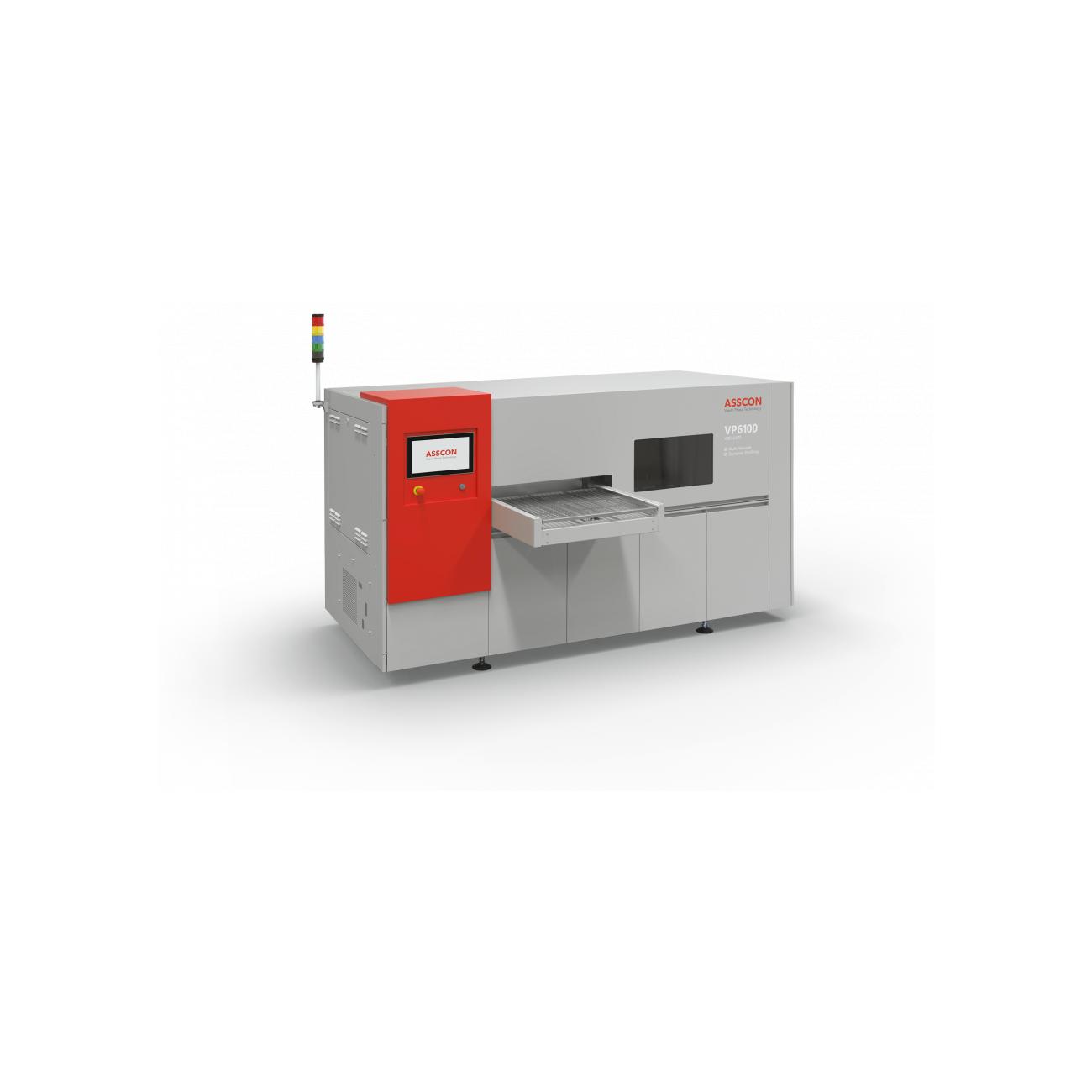

Asscon - Vapor Phase Soldering Machine VP6100 vacuum batch

ASSC-2141000

Asscon - Vapor Phase Soldering Machine VP6100 vacuum batch

ASSC-2141000

2 - 6 weeks
Price on request

Price request

Contact us

    Or leave your details and we will contact you as soon as possible.


    • Independent expertise
    • Customers give us a 9+
    • Extensive offer
    • More than 45 years of experience

    More information about leasing options

    Worry-free investing through business leasing

    Do you want to expand or replace your machine park? This is possible via Smans. Consider a manual, semi-automatic machine or a fully automated production line. We work together with reliable leasing partners. They offer flexible and reliable tailor-made business financing solutions.

    We always first identify the value of your project and your objectives.

    Thanks to our expertise, we offer our leasing partners a lot of clarity. They can therefore make a better risk assessment than standard providers

    The benefits of leasing through Smans:

    • financial space/maintenance of liquid assets;
    • for both large and small investments;
    • promote your growth and increase your capacity;
    • strengthen your competitive position through an up-to-date machine park.

    Do you want to know what business leasing can do for your company? Contact team Smans.

      Would you like to know what business leasing could mean for your project? Our sales team will be happy to answer all your questions!



      • Independent expertise
      • Customers give us a 9+
      • Extensive offer
      • More than 45 years of experience

      Need a quote, installation, or training?
      Call +32 (0)14 42 44 01 or contact us

      Contact us

      In need direct contact with a sales representative?

      Nick Janssen

      Product specialist

        Or leave your details and we will contact you as soon as possible.


        • Independent expertise
        • Customers give us a 9+
        • Extensive offer
        • More than 45 years of experience
        • Independent expertise
        • Customers give us a 9+
        • Extensive offer
        • More than 45 years of experience
        SKU: ASSC-2141000 Categories: , ,

        Description

        The VP6100 is equipped with patented Multi Vacuum Technology. This reduces voids in solder joints and achieves void rates of <1%. The vacuum module, which can be switched on during the process, is located outside the soldering area (Clean Vacuum Technology) and therefore requires very little maintenance.

        Features

        • Oxidation-free preheating and soldering process
        • Continuously adjustable temperature gradient through sensor-based profiling
        • Dynamic Profiling as standard
        • Can be used in 24/7 series operation
        • 2-Chamber-System
        • Low medium consumption
        • Internal memory of up to 500 soldering programs
        • Cost-effective soldering system for the highest technological requirements
        • Vacuum module with Multi Vacuum technology



        Specifications

        Average energy consumption3,7 kW
        Connection load13,4 kW
        End vacuum (pump)0,5 mbar
        Maximum solder height60 mm
        Maximum transport clearance100 mm
        Power supply400 V / 3 / N / PE 50 Hz
        Workpiece carrier format600 x 600 mm

        The VP6100 is equipped with patented Multi Vacuum Technology. This reduces voids in solder joints and achieves void rates of <1%. The vacuum module, which can be switched on during the process, is located outside the soldering area (Clean Vacuum Technology) and therefore requires very little maintenance.

        Features

        • Oxidation-free preheating and soldering process
        • Continuously adjustable temperature gradient through sensor-based profiling
        • Dynamic Profiling as standard
        • Can be used in 24/7 series operation
        • 2-Chamber-System
        • Low medium consumption
        • Internal memory of up to 500 soldering programs
        • Cost-effective soldering system for the highest technological requirements
        • Vacuum module with Multi Vacuum technology



        Type
