Description

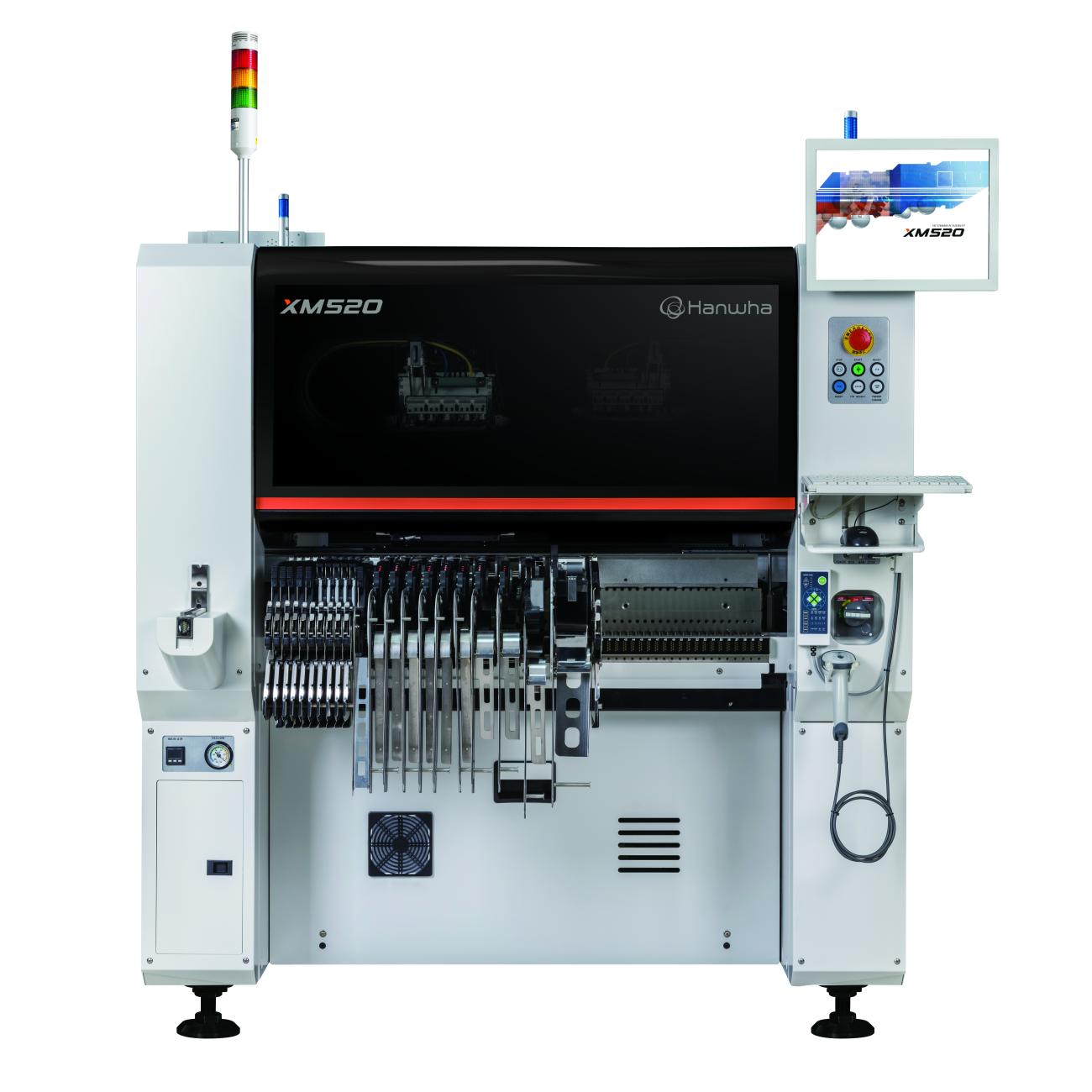

The Hanwha XM520 is a powerful and reliable SMT pick & place machine that delivers outstanding performance in both high-mix/low-volume and mass production environments.
With its dual gantry, multi-head system, and high positioning accuracy, the XM520 combines speed, precision, and flexibility in one compact design.
The machine supports a wide range of components, from 01005 chips to large ICs, and easily handles a variety of PCB sizes. Automatic calibration, intelligent vision alignment, and real-time feedback ensure consistent placement quality throughout the entire production cycle.
The XM520 is easy to operate thanks to its intuitive user interface, quick product changes, and automated settings. With low maintenance requirements and a stable mechanical design, it offers a sustainable solution for manufacturers who demand maximum productivity and accuracy in their SMT process.
Specifications
| Alignment Type | Flying + Stage Vision |
| Component Height Maximum | 15 mm |
| Component range | 01005 to 55 × 55 mm, height up to 15 mm |
| Compressed air consumption | 100 Nl/min |
| Conveyor Type | Dual Lane |
| CPH | 100.000 |
| Dimensions (L × D × H) | 1650 × 1870 × 2084 mm |
| Feeder configuration | Up to 120 positions (8 mm), compatible with tape, stick, and tray feeders |
| Feeder Type | Electric |
| Largest Component Handling | 150 x 75 mm |
| PCB Size (Maximum) | 900 x 590 mm (Single Mode) |
| PCB Size (Minimum) | 50 x 40 mm |
| PCB Size (Optional) | 1200 x 590 mm |
| PCB thickness | 0.38 – 4.2 mm |
| Placement accuracy | ± 22 µm (Cpk ≥ 1.0) |
| Power consumption | 3.5 kVA (RMS), 5.0 kVA (max) |
| Smallest Component (Metric) | 0.2 x 0.1 mm |
