Feeder Finger - Hanwha SMN Cut Tape Feeder Finger 8 Units per Kit with 1 Tape Push Tool
FF-2015202
For Hanwha SMN Pneumatic Feeders
Feeder Finger - Hanwha SMN Cut Tape Feeder Finger 8 Units per Kit with 1 Tape Push Tool
FF-2015202
For Hanwha SMN Pneumatic Feeders
€1.350,88 / SET - 2 - 6 weeks
Need a quote, installation, or training?
Call +32 (0)14 42 44 01 or contact us
Nick Janssen
Product specialist
Description

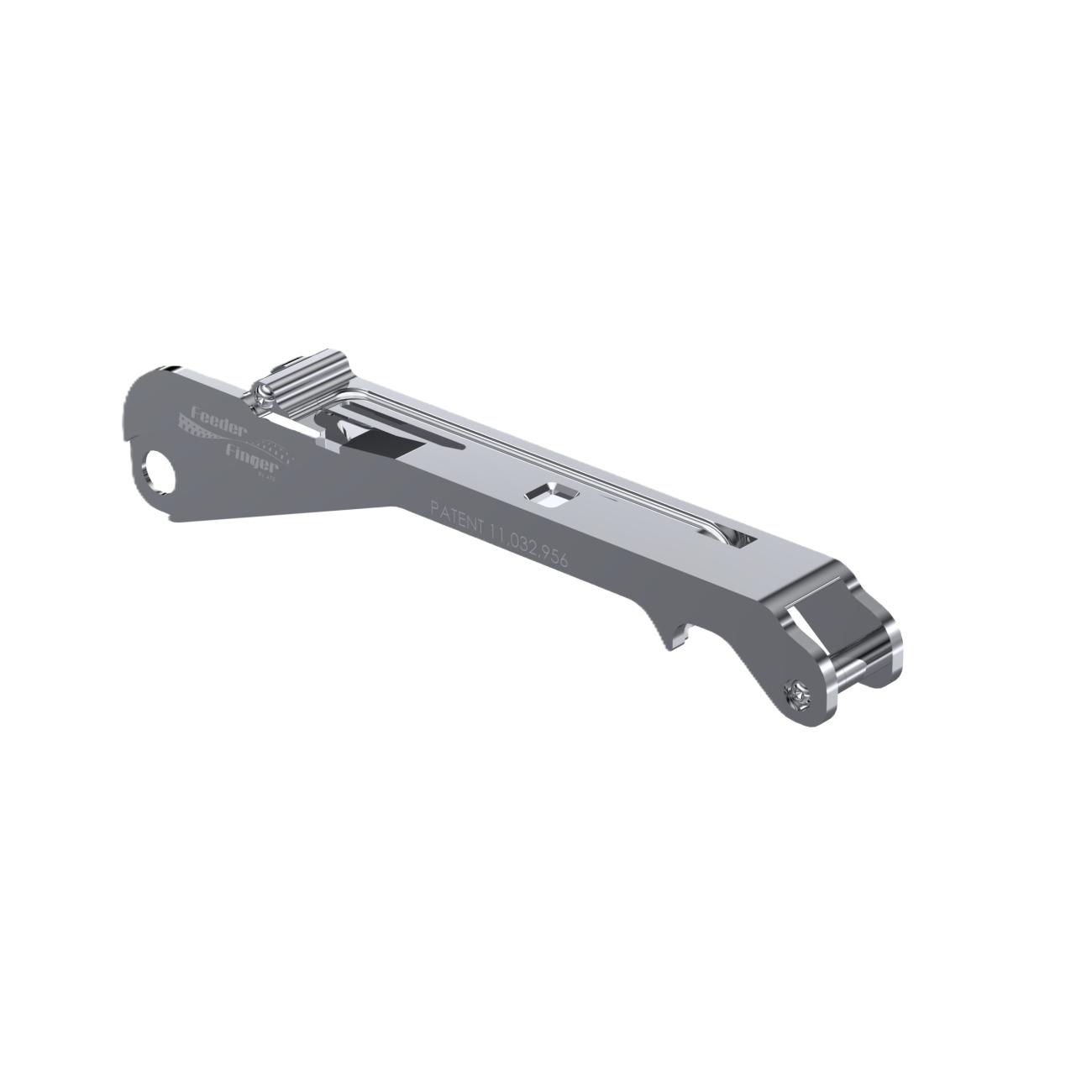

The Hanwha SMN Cut Tape Feeder Finger is specifically designed to integrate seamlessly with Hanwha SMN 2 mm and 4 mm pneumatic feeders, improving operational efficiency when handling cut tape. The innovative plow blade design significantly reduces feeder setup and changeover time.
Components such as resistors, capacitors, and chips are packaged in small pockets on a long strip, known as component tape. This is normally loaded into the feeder on a full reel.
Cut tape is a cut-off piece of that tape, useful when you only need a limited number of components, for example for a prototype, a small production run, or when your components are supplied as a short strip instead of on a full reel. Normally, such a piece of tape first needs to be extended with an empty leader to pass through the feeder, which costs time and material (splicing). The SMN Feeder Finger eliminates the need for this.
Operators can load cut tape strips as short as 3″ (76.2 mm) or an entire reel in just 5 seconds, with zero component loss. Eliminating cover tape routing and collection increases machine utilization and throughput.
Each kit comes with 8 Feeder Fingers and 1 Tape Push Tool. This compact blue tool helps push the tape through the sprocket holes onto the sprocket wheel during loading, making the process even smoother.
Benefits
- Attaches easily to your existing feeder
- Handles cut tape as short as 3″ / 76.2 mm
- Eliminates splicing
- Loads in under 5 seconds
- Eliminates cover tape jams
- Up to 80% faster feeder setup
- Includes a Tape Push Tool for extra loading convenience
Specifications
| Full reels or cut tape | Yes |
| Kit contents | 8 Feeder Fingers + 1 Tape Push Tool |
| Tape depth (feeder type) | 2.5 mm (8 mm) |
| Tape width | 8 mm |
| Typical components | 0201 / 1210 |
