Schleuniger - WireStacker 1000
SCHLEUN-100CXMWS1000

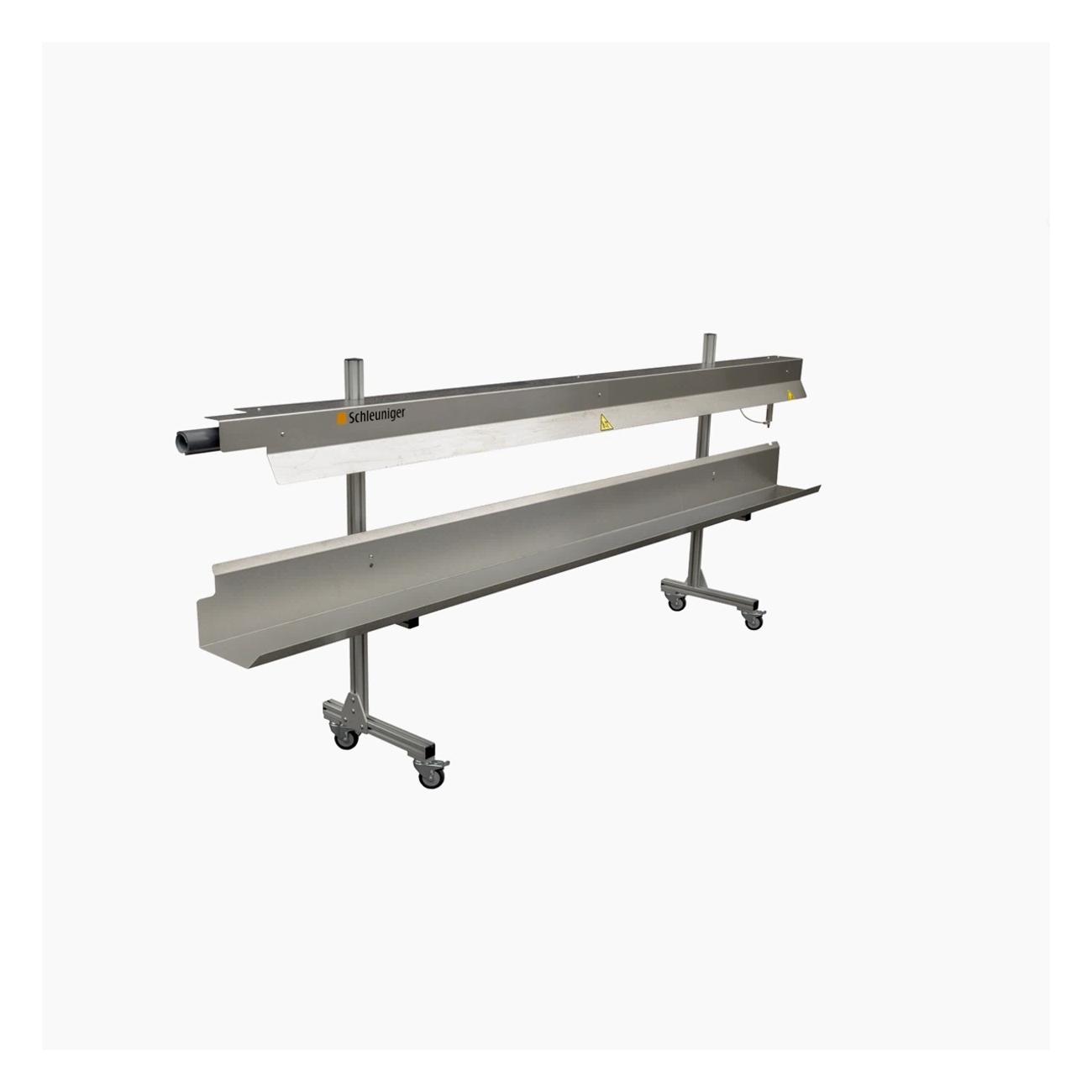

Passive wire stacker with guide channel and collecting tray, for cables up to 3 m long.
Schleuniger - WireStacker 1000
SCHLEUN-100CXMWS1000
Passive wire stacker with guide channel and collecting tray, for cables up to 3 m long.
Contact us
Need a quote, installation, or training?
Call +32 (0)14 42 44 01 or contact us
Nick Janssen
Product specialist
Description
The Komax WireStacker 1000 collects the cables from your cut and strip machine and stacks them neatly in a collecting tray. A guide channel carries the cables to the tray in a controlled way, so they are ready for the next process step.
The WireStacker 1000 handles cables up to 3 m long, and longer lengths are possible depending on the cable. It processes cross-sections from 0.34 mm² (22 AWG) up to a diameter of 25 mm.
The wire outlet height can be set between 610 and 1060 mm, so the WireStacker 1000 is easy to match to your machine.
Key benefits
- Simple, passive stacking system
- Guide channel and collecting tray for neatly stacked cables
- For cables up to 3 m long, longer depending on the cable
- Wide range: from 0.34 mm² up to 25 mm diameter
- Adjustable wire outlet height
Specifications
| Compressed-air connection | 6 bar |
| Dimensions/length | 3000 mm |
| Height of wire outlet max. | 1060 mm |
| Height of wire outlet min. | 610 mm |
| Raw material length | Up to 3,000 mm (120”), longer lengths possible but cable depending |
| Wire diameter max. | 25 mm |
